Which two outcomes are predictable behaviors for HSRP? (Choose two)

• A.The two routed share the same IP address, and default gateway traffic is load-balanced between them
• B.Each router has a different IP address both routers act as the default gateway on the LAN, and traffic is load balanced between them.
• C.The two routers synchronize configurations to provide consistent packet forwarding
• D.The two routers share a virtual IP address that is used as the default gateway for devices on the LAN.
• E.The two routers negotiate one router as the active router and the other as the standby router

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. Between which zones do wireless users expect to experience intermittent connectivity?

• A.between zones 1 and 2
• B.between zones 2 and 5
• C.between zones 3 and 4
• D.between zones 3 and 6

Correct Answer: C

Zones 3 and 4 both have Channel 11 that is overlapped.
Zones 3 and 6 do not overlap at all.

Comment: *

Name: *

Email: *

Verification: *

Which type of device can be replaced by the use of subinterfaces for VLAN routing?

• A.Layer 2 switch
• B.Layer 2 bridge
• C.router
• D.Layer 3 switch

Comment: *

Name: *

Email: *

Verification: *

What is the role of nonoverlapping channels in a wireless environment?

• A.to reduce interference
• B.to stabilize the RF environment
• C.to allow for channel bonding
• D.to increase bandwidth

Comment: *

Name: *

Email: *

Verification: *

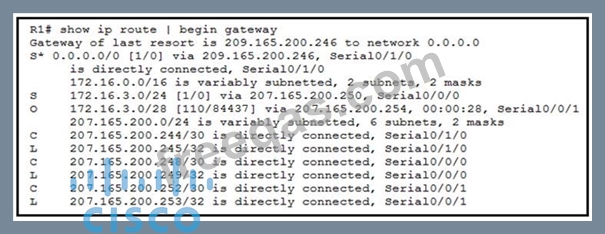

Refer to the exhibit. A packet is being sent across router R1 to host 172.16.3.14.
To which destination does the router send the packet?

• A.207.165.200.246 via Serial0/1/0
• B.207.165.200.254 via Serial0/0/1
• C.207.165.200.254 via Serial0/0/0
• D.207.165.200.250 via Serial/0/0/0

Comment: *

Name: *

Email: *

Verification: *
