Free Access to Cisco.200-301.v2025-10-09.q227 with Valid Practice Test (Page 40)

Question 191

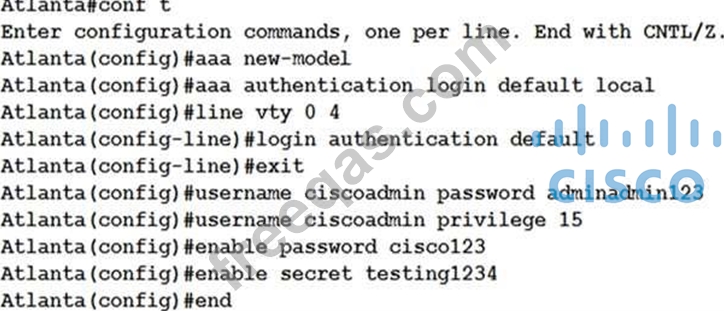

Refer to the exhibit. Which password must an engineer use to enter the enable mode?

A.adminadmin123
B.cisco123
C.default
D.testing1234

Question 192

Which three statements about HSRP operation are true? (Choose three.)

A.The HSRP virtual IP address must be on a different subnet than the routers' interfaces on the same LAN.
B.HSRP supports only clear-text authentication.
C.HSRP supports up to 255 groups per interface, enabling an administrative form of load balancing
D.The HSRP default timers are a 3 second hello interval and a 10 second dead interval.
E.The HSRP virtual IP address must be the same as one of the router's interface addresses on the LAN.
F.The virtual IP address and virtual address are active on the HSRP Master router.

Question 193

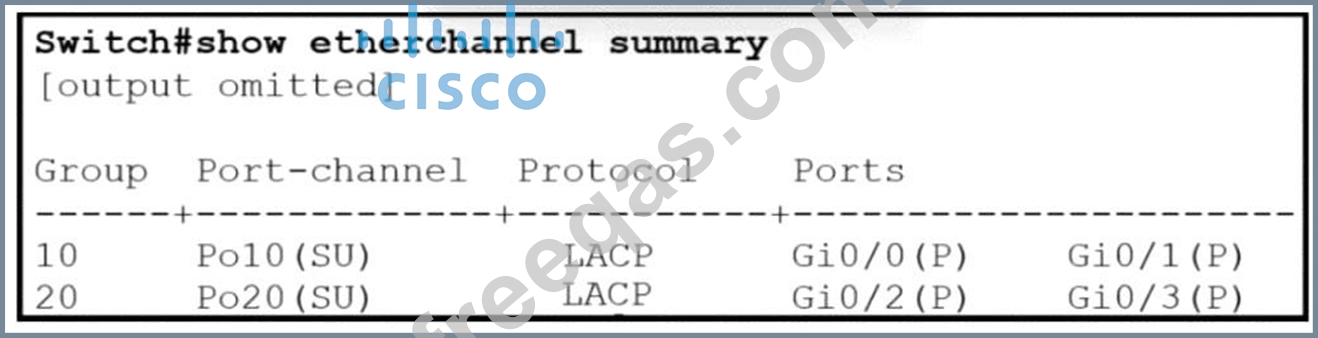

Refer to the exhibit.

Which two commands when used together create port channel 10? (Choose two.)

A.int range g0/0-1 channel-group 10 mode on
B.int range g0/0-1
channel-group 10 mode passive
C.int range g0/0-1 channel-group 10 mode auto
D.int range g0/0-1
channel-group 10 mode active
E.int range g0/0-1 chanm.l-group 10 mode desirable

Question 194

R1 has learned route 192.168.12.0/24 via IS-IS, OSPF, RIP and Internal EIGRP Under normal operating conditions, which routing protocol is installed in the routing table?

A.OSPF
B.IS-IS
C.RIP
D.Internal EIGRP

Question 195

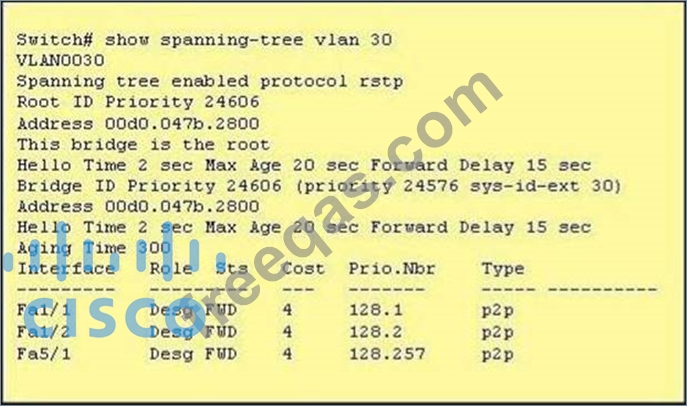

Refer to the exhibit.

The output that is shown is generated at a switch.
Which three of these statements are true? (Choose three.)

A.Thirty VLANs have been configured on this switch.
B.The bridge priority is lower than the default value for spanning tree.
C.The switch must be the root bridge for all VLANs on this switch.
D.All ports will be in a state of discarding, learning, or forwarding.
E.All designated ports are in a forwarding state.
F.All interfaces that are shown are on shared media.
