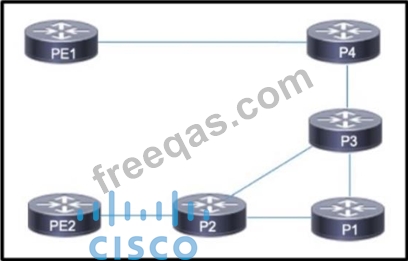

Refer to the exhibit. A regional service provider provides connectivity for several midsize businesses that run mission-critical applications between multiple offices connected via PE 1 and PE2. Links throughout the service provider network are connected using shared resources and an SR-TE tunnel is in use to route traffic over different paths depending on congestion policies.
The networking team must implement SR updates to reduce downtime in the event of a link failure. Which action must the team take to meet the requirements?

• A.Implement BGP timers to support immediate reconvergence when the BGP neighbor relationship status changes.
• B.Implement VRFs to segment the network and avoid large-scale network outages when a link fails
• C.Implement targeted LDP neighbors to prevent unwanted LDP relationships from forming
• D.Implement SRLG protection to identify a post-convergence backup path

Comment: *

Name: *

Email: *

Verification: *

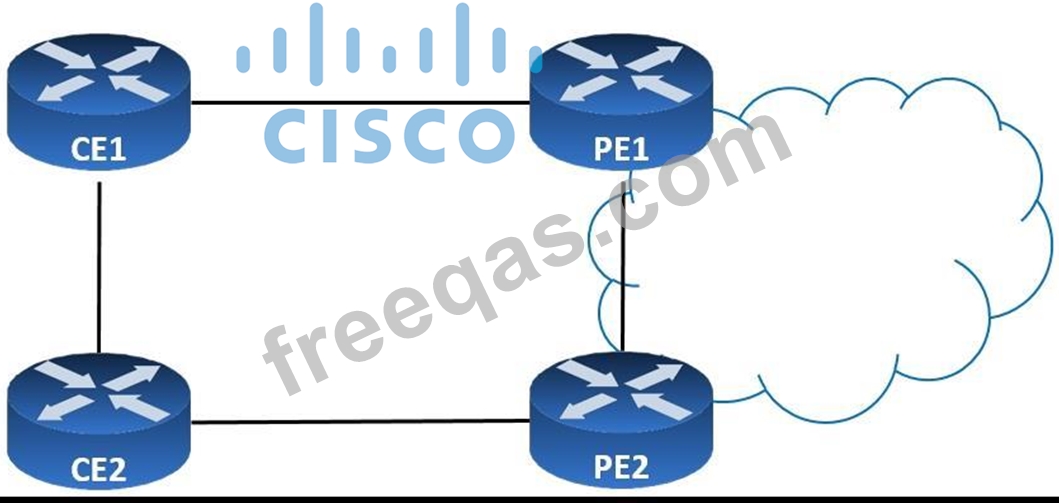

Refer to the exhibit. CE1 and CE2 are iBGP neighbors in AS 65516. All traffic that exits AS 65516 must use the link from CE1 to PE1. CE1 is advertising a higher local preference to CE2, but traffic from CE2 still prefers the PE2 link. Which action corrects the problem?

• A.Add the lower local-preference value on PE2 towards CE2.
• B.Configure CE1 to send routes to CE2 with a higher MED.
• C.Configure CE1 to send routes to CE2 with a higher weight.
• D.Add the next-hop self command to the CE1 neighbor statement for CE2.

Comment: *

Name: *

Email: *

Verification: *

What is the function of BGP confederations?

• A.They assign an external BGP router to serve as the route reflector
• B.They require routers to use private AS numbers.
• C.They eliminate the need for a fully-meshed internal BGP design.
• D.They enable a single device to distribute a common configuration to its peers

Comment: *

Name: *

Email: *

Verification: *

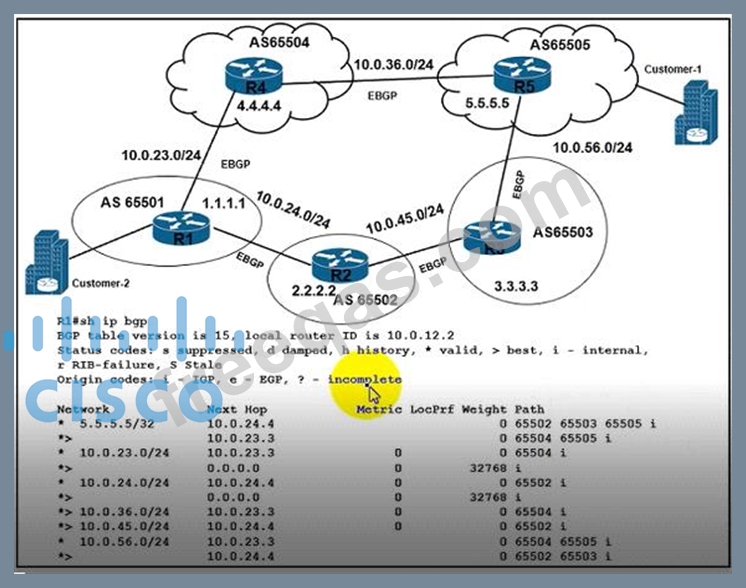

Refer to the exhibit.

Refer to the exhibit There is a BGP traffic path issue between Customer-1 and Customer-2 Users from Customer-2 have reported file transfer issues High utilization on the path between both customers causes many packet drops. Which configuration resolves the issue?

• A.Option C
• B.Option D
• C.Option A
• D.Option B

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. A network operator is getting the route for 10.11.11 0/24 from two upstream providers on #XR3.
The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to route via next hop of 10.0.0.9 as primary when available.
Which of these can the operator use the routing policy language for, to enforce this traffic forwarding path?

• A.higher local preference on the prefix coming from 192.168.0.1
• B.lower local preference on the prefix coming from 192.168.0.2
• C.weight of 0 on the prefix coming from 192.168.0.2
• D.weight of 100 on the prefix coming from 192.168.0.1
