Which protocol is responsible for data plane forwarding in a Cisco SD-Access deployment?

• A.VXLAN
• B.IS-IS
• C.OSPF
• D.LISP

Comment: *

Name: *

Email: *

Verification: *

Which characteristic distinguishes Ansible from Chef?

• A.Ansible uses Ruby to manage configurations. Chef uses YAML to manage configurations.
• B.Ansible lacs redundancy support for the master server. Chef runs two masters in an active/active mode.
• C.Ansible pushes the configuration to the client. Chef client pulls the configuration from the server.
• D.The Ansible server can run on Linux, Unix or Windows. The Chef server must run on Linux or Unix.

Comment: *

Name: *

Email: *

Verification: *

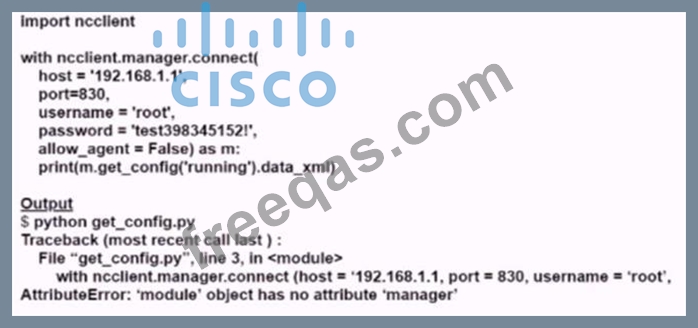

Running the script causes the output in the exhibit. Which change to the first line of the script resolves the error?

• A.from ncclient import
• B.import ncclient manager
• C.import manager
• D.from ncclient import*

Comment: *

Name: *

Email: *

Verification: *

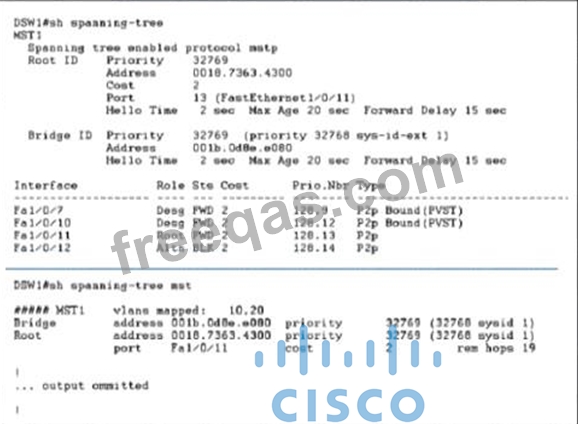

Refer to the exhibit.

Which two commands ensure that DSW1 becomes root bridge for VLAN 10 and 20?

• A.spanning-tree mst 1 priority 1
• B.spanning-tree mst 1 root primary
• C.spanning-tree mstp vlan 10,20 root primary
• D.spanning-tree mst vlan 10,20 priority root
• E.spanning-tree mst 1 priority 4096

Correct Answer: B,E

Explanation

Comment: *

Name: *

Email: *

Verification: *

Which method displays text directly into the active console with a synchronous EEM applet policy?

• A.event manager applet boom
  event syslog pattern 'UP'
  action 1.0 gets 'logging directly to console'
• B.event manager applet boom
  event syslog pattern 'UP'
  action 1.0 syslog priority direct msg 'log directly to console'
• C.event manager applet boom
  event syslog pattern 'UP'
  action 1.0 puts 'logging directly to console'
• D.event manager applet boom
  event syslog pattern 'UP'
  action 1.0 string 'logging directly to console'

Correct Answer: B

Explanation
To enable the action of printing data directly to the local tty when an Embedded Event Manager (EEM) applet is triggered, use the command in applet configuration mode.

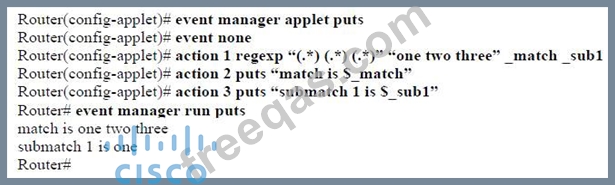

The following example shows how to print data directly to the local tty:

The action puts command applies to synchronous events. The output of this command for a synchronous applet is directly displayed to the tty, bypassing the syslog.
