Which three OSPF parameters must match before two devices can establish an OSPF adjacency? (Choose three.)

• A.hello timer setting
• B.subnet mask
• C.process ID
• D.area number
• E.interface cost
• F.IP address

Comment: *

Name: *

Email: *

Verification: *

What causes multicast traffic to permanently stay on the shared tree and not switch to the source tree?

• A.The SPT threshold is set to infinity.
• B.The RP IP address is configured incorrectly.
• C.The RP announcements are being filtered.
• D.SSM range is being used.

Correct Answer: C

https://www.cisco.com/c/en/us/td/docs/ios/solutions_docs/ip_multicast/White_papers/mcst_ovr.html

Comment: *

Name: *

Email: *

Verification: *

Which action enables an IPv6 multicast router on a subnet with locally attached receivers to quickly determine if there is a need to send traffic for a certain multicast group out to that subnet?

• A.Activate IGPMv3 snooping and fast-leave.
• B.Adjust the MLD report interval on the router.
• C.Decrease the ICMPv4 multicast query timer.
• D.Enable the MLDv2 explicit-tracking feature.

Comment: *

Name: *

Email: *

Verification: *

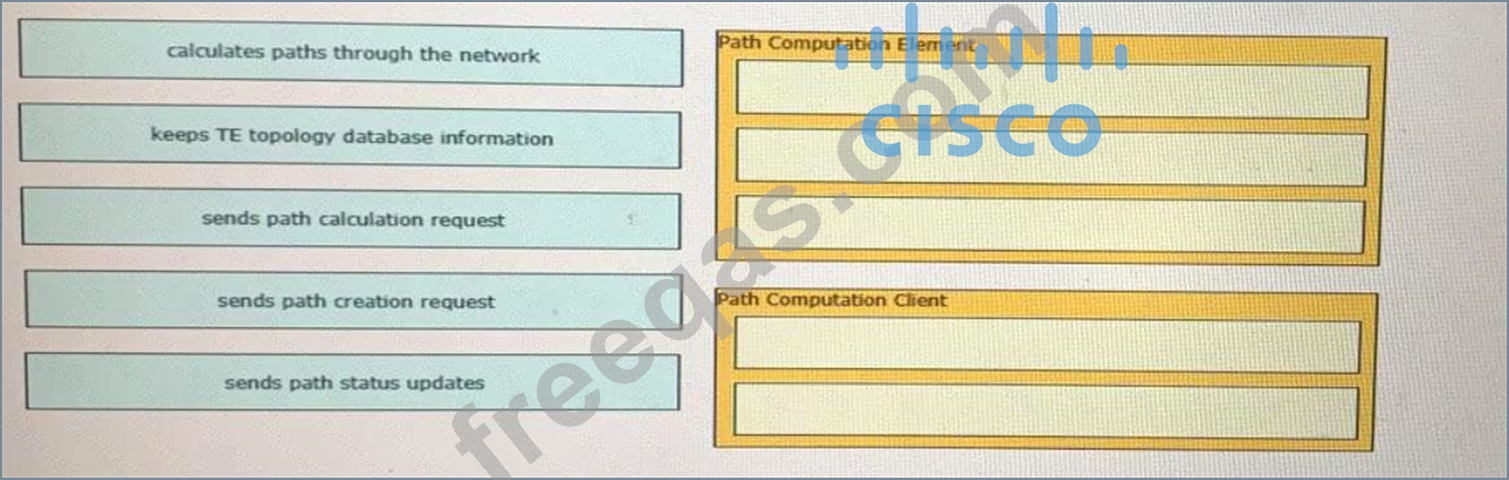

Drag and drop the functions from the left onto the correct Path Computation Element Protocol roles on the right

Correct Answer:

Explanation

Path Computation Element (PCE)
Represents a software module (which can be a component or application) that enables the router to compute paths applying a set of constraints between any pair of nodes within the router's TE topology database. PCEs are discovered through IGP.
Path Computation Client (PCC)
Represents a software module running on a router that is capable of sending and receiving path computation requests and responses to and from PCEs. The PCC is typically an LSR (Label Switching Router).
https://www.cisco.com/c/en/us/td/docs/routers/crs/software/crs_r5-3/mpls/configuration/guide/b-mpls-cg53x-crs

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. An engineer started to configure a router for OSPF. Which configuration must the engineer perform on the router without changing any interface configuration so that the router establishes an OSPF neighbor relationship with its peer?

• A.router(config)# router ospf 11router(config-if)# no passive-interface ethernet 1/1
• B.router(config)# interface ethernet 1/1router(config-if)# ip ospf priority 0
• C.router(config)# interface ethernet 1/1router(config-if)# ip ospf hello-interval
• D.router(config)# interface ethernet 1/1router(config-if)# no shutdown
