Free Access to Cisco.350-501.v2025-11-05.q511 with Valid Practice Test (Page 6)

Question 21

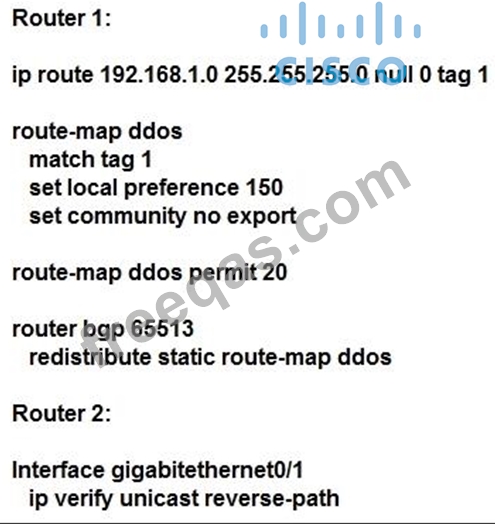

Refer to the exhibit. An engineer is preparing to implement data plane security configuration.
Which statement about this configuration is true?

A.Router 2 must configure a route to null 0 for network 192 168.1 0/24 for the RTBH implementation to be complete.
B.Router 1 is the trigger router in a RTBH implementation.
C.Router 1 must be configured with uRPF for the RTBH implementation to be effective.
D.Router 2 is the router receiving the DDoS attack

Question 22

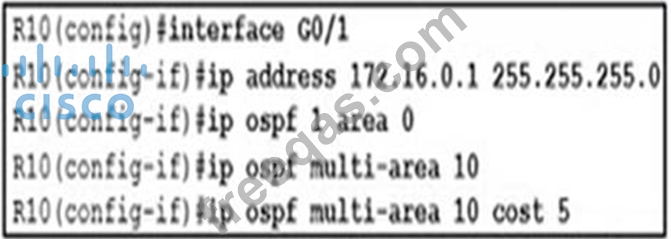

Refer to the exhibit.

A network engineer Is implementing OSPF multiare
a. Which command on interface G0/1 resolves adjacency Issues in the new area?

A.Ip ospf network broadcast
B.Ip ospf network non-broadcast
C.Ip ospf network polnt-to-multlpoint
D.Ip ospf network point-to-point

Question 23

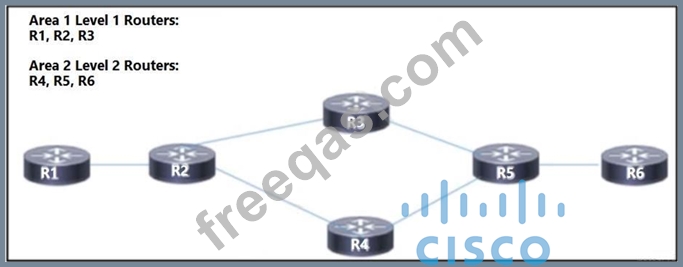

Refer to the exhibit. A network engineer is in the process of implementing IS -IS Area 1 and Area
2 on this network to segregate traffic between different segments of the network. The hosts in the two new areas must maintain the ability to communicate with one another in both directions.
Which additional change must be applied?

A.Reconfigure either R3 or R4 as a Level 1/Level 2 router.
B.Reconfigure routers R2 and R5 as Level 1/Level 2 routers.
C.Reconfigure routers R1, R2, R5, and R6 as Level 1/Level 2 routers.
D.Reconfigure routers R4, R5 and R6 as Level 1 routers

Question 24

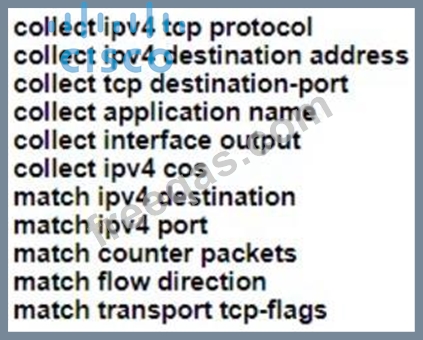

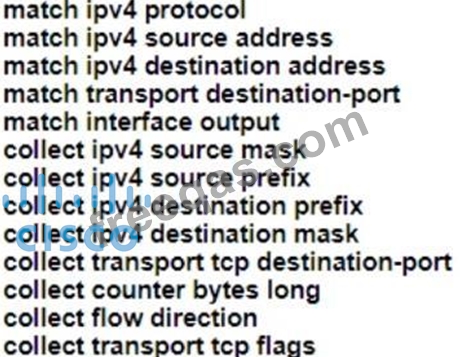

A network engineer must collect traffic statistics for an internal LAN toward the internet. The sample must include the source and destination IP addresses the destination ports, the total number of bytes from each flow using a 64-bit counter and all transport flag information. Because of CPU limits, the flow collector processes samples that are a maximum of 20 seconds long.
Which two configurations must the network engineer apply to the router? (Choose two.)
