-- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is reviewing the 'test' partition.
Which objects, in order, can be removed from the partition?

• A.delete node 10.1.1.2, delete pool test2_pool
• B.delete virtual test1_vs, delete pool test2_pool, delete node 10.1.1.1
• C.delete pool test1_pool, delete pool test2_pool, delete node 10.1.1.3
• D.delete pool test1_pool, delete node 10.1.1.2
• E.delete pool test1_pool, delete node 10.1.1.2, delete node 10.1.1.1

Comment: *

Name: *

Email: *

Verification: *

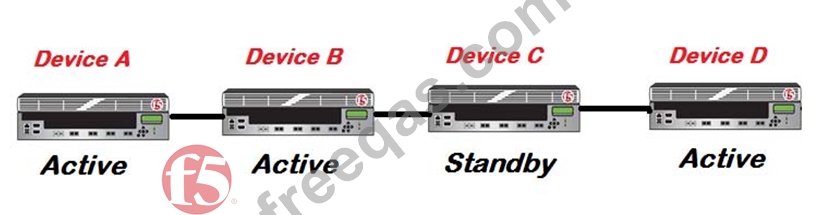

-- Exhibit-

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is upgrading the LTM devices.
Which device should be upgraded first?

• A.Device A
• B.Device B
• C.Device C
• D.Device D

Comment: *

Name: *

Email: *

Verification: *

Given the iRule:
when HTTP_REQUEST {
if {([HTTP::username] ne "") and ([HTTP::password] ne "") } {
log local0. "client ip [IP::remote_addr] credentials provided [HTTP::username] [HTTP::password]"} else { pool old_application_pool
}
}
The associated virtual server has a default pool named new_application_pool.
Which functionality does the iRule provide?

• A.Allows clients without credentials to access the old_application_pool and logs the access of clients with credentials to the new_application_pool.
• B.Allows clients with credentials to access the old_application_pool and logs the access of clients without credentials to the new_application_pool.
• C.Allows clients with credentials to access the old_application_pool and logs the attempted access of clients with credentials to the new_application_pool.
• D.Allows clients without credentials to access the old_application_pool and logs the attempted access of clients without credentials to the new_application_pool.

Comment: *

Name: *

Email: *

Verification: *

These log entries can have different root causes:
Jun 28 05:01:21 LTM_A notice mcpd[27545]: 0107143a:5: CMI reconnect timer: enabled Jun 28 05:01:21 LTM_A notice mcpd[27545]: 01071431:5: Attempting to connect to CMI peer 1.1.1.2 port
6699
Jun 28 05:01:21 LTM_A notice mcpd[27545]: 01071432:5: CMI peer connection established to 1.1.1.2 port
6699
Jun 28 05:01:26 LTM_A notice mcpd[27545]: 0107143a:5: CMI reconnect timer: disabled, all peers are connected Which two commands should be used to obtain additional information on these entries? (Choose two.)

• A.tmsh modify /sys db log.mcpd.level value debug
• B.tmsh modify /sys db log.cmi.level value debug
• C.tmsh show /sys mcpd
• D.bigstart status mcpd

Comment: *

Name: *

Email: *

Verification: *

What is the effect of an iRule error such as referencing an undefined variable?

• A.The connection will continue, but the iRule will NOT be executed again for the lifetime of the connection.
• B.The iRule execution will continue with the next statement.
• C.The execution of the current event within the iRule will be terminated.
• D.The iRule execution will be terminated, and both the client and server side connections will be reset.
