Which three common FortiGate-to-collector-agent connectivity issues can you identify using the FSSO real- time debug? (Choose three.)

• A.Incompatible collector agent software version.
• B.Log is full on the collector agent.
• C.Refused connection. Potential mismatch of TCP port.
• D.Inability to reach IP address of the collector agent.
• E.Mismatched pre-shared password.

Comment: *

Name: *

Email: *

Verification: *

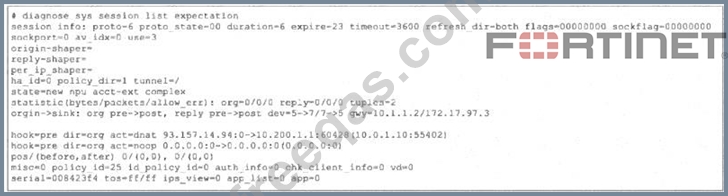

Refer to the exhibit, which shows the partial output of a diagnose command.

Which two conclusions can you draw from the output shown in the exhibit? (Choose two.)

• A.FortiGate will drop the expected traffic if it does not arrive within 23 seconds.
• B.This is a pinhole session to allow traffic for a TCP protocol that dynamically assigns TCP ports.
• C.The session is checked against firewall policy ID 25.
• D.Clearing the master session has no impact on the expectation session.

Comment: *

Name: *

Email: *

Verification: *

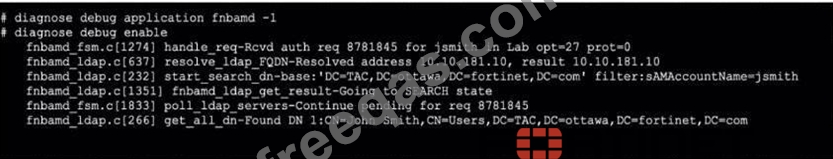

Refer to the exhibit, which shows a truncated output of a real-time LDAP debug.

What two conclusions can you draw from the output? (Choose two.)

• A.The user is authenticating using CN=John Smith.
• B.FortiOS is able to locate the user in step 3 (Bind Request) of the LDAP authentication process.
• C.FortiOS is performing the second step (Search Request) in the LDAP authentication process.
• D.The name of the configured LDAP server is Lab.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit, which shows the output of a debug command.

Which two statements about the output are true? (Choose two.)

• A.One of the neighbors has a router ID of 0.0.0.4.
• B.In the network connected to port4, two OSPF routers are down.
• C.There are a total of five OSPF routers attached to the vorz4 network segment
• D.The interlace is part of the OSPF backbone area.

Comment: *

Name: *

Email: *

Verification: *

Exhibit.

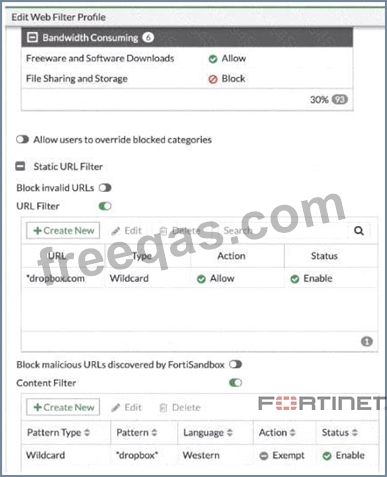

Refer to the exhibit, which shows a partial web fillet profile configuration.
Which action does FortiGate lake if a user attempts to access www. dropbox. com, which is categorized as File Sharing and Storage?

• A.FortiGate allows the connection, based on the URL Filter configuration.
• B.FortiGate blocks the connection, based on the FortiGuard category based filter configuration.
• C.FortiGate blocks the connection as an invalid URL.
• D.FortiGate exempts the connection, based on the Web Content Filter configuration.
