An HPE Synergy customer needs to prevent a timeout and loss of communication during an external switch firmware upgrade.
Click the parameter that the customer should configure within an uplink set to meet this requirement

Correct Answer:

Explanation:

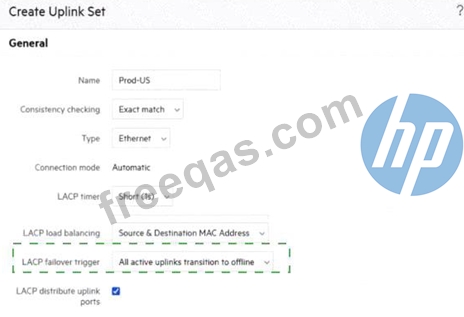

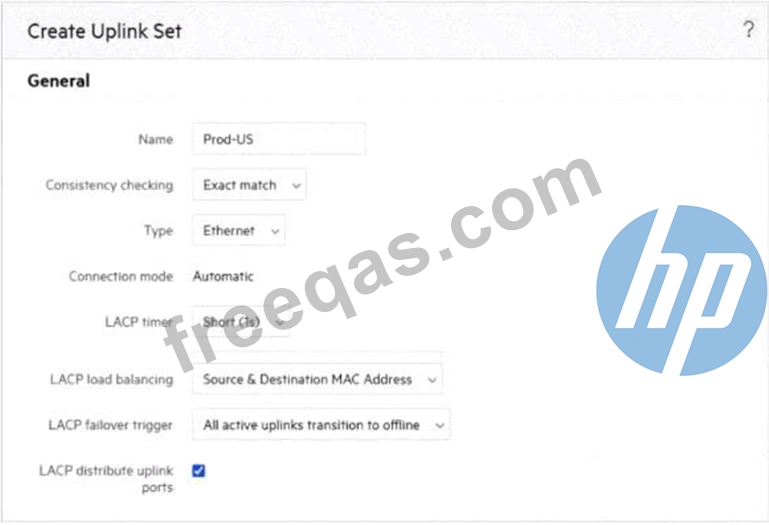

To prevent a timeout and loss of communication during an external switch firmware upgrade, the customer should configure the LACP failover trigger within the uplink set. By setting the LACP failover trigger to "All active uplinks transition to offline," the configuration ensures that the traffic will be redirected to available uplinks in the event of an uplink failure or during the upgrade process, maintaining communication and preventing timeouts.

Comment: *

Name: *

Email: *

Verification: *

Your customer has an HPE Synergy frame equipped with a D3940 Storage Module. Each of the compute nodes has the appropriate storage controller installed and two 12Gb SAS switches installed in the first fabric.
The customer reports that the compute nodes cannot access the storage module.
What will you verify first when troubleshooting this problem?

• A.If the SAS logical interconnect is a part of the logical enclosure and has a healthy state.
• B.If there is at least one iSCSI network configured that will provide access to the module.
• C.If the D3940 module is imported in a managed state that allows volume provisioning.
• D.If the D3940 storage module is properly licensed through the HPE OneView interface.

Comment: *

Name: *

Email: *

Verification: *

Your customer plans to add four HPE Synergy frames to an existing management ring Ail installed frames are equipped with two 2-port FLM modules, while new frames will be equipped with 4-port FLM modules.
Which statement about mixing different FLM modules is true?

• A.Existing 2-port FLM modules must be replaced with 4-port FLM modules
• B.A management ring can contain mixed frame link module configurations
• C.A management ring with mixed FLM modules cannot have more than 12 frames
• D.Mixing different FLM modules is allowed if all of them have the same firmware version

Comment: *

Name: *

Email: *

Verification: *

Your customer plans to use HPE Primera to boot HPE Synergy compute nodes. They currently have two HPE Virtual Connect SE 100Gb F32 Module for Synergy modules installed in the frame. The customer wants to use FC as a storage access protocol What must be done to complete this task?

• A.Enable FC primary and secondary boot on the modules through the HPE OneView interface
• B.FC connectivity on the modules should be enabled through the service console by disabling FCoE.
• C.Add FC upgrade licenses in HPE OneView that will enable FC connectivity for the modules
• D.Enter both modules into a maintenance mode, then enable FC connectivity through CLI

Comment: *

Name: *

Email: *

Verification: *

In the past a customer experienced a networking issue where network ports went down and came back up in quick succession.
Which HPE Virtual Connect SE 100 GD F32 Module for HPE Synergy feature can be configured to disable such ports?

• A.Pause flood protection
• B.sFlow
• C.Storm control
• D.Port flap protection
