Free HP HPE6-A41 Exam Dumps Questions & Answers

A company wants a modular switch for the core layer of its mid-sized campus. The switch requires 32 10 G ports in a single switch with the ability to scale in the future. Which ArubaOS switches series is best suited for this role?

• A.  Aruba 2930F
• B.  Aruba 3810
• C.  Aruba 3800
• D.  Aruba 5400R

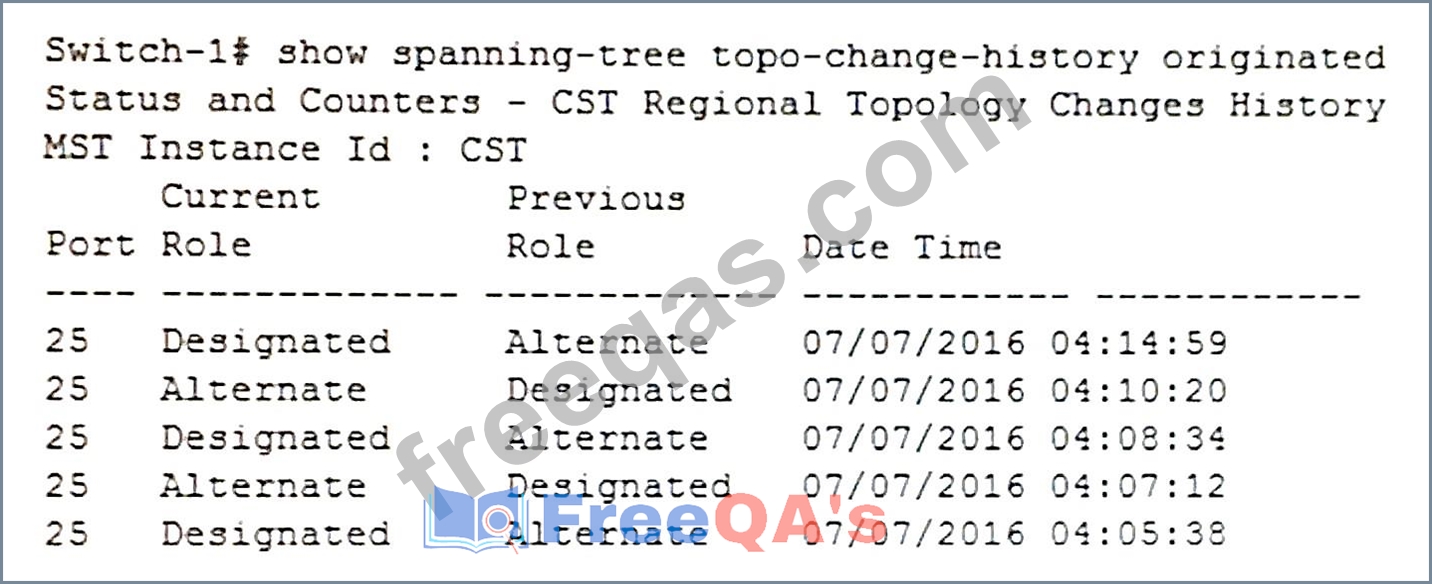

Refer to the exhibit.

Based on the exhibit, what is the problem?

• A.  Switch-1 and another switch are configured with the same spanning tree priority and cause the root election to occur again and again.
• B.  Interface 25 on Switch-1 is incorrectly configured as an STP edge port and causes a loop to occur.
• C.  An issue causes the spanning tree to converge and re-converge again and again.
• D.  Interface 25 on Switch-1 does not support the correct VLANs and prevents the interface from receiving the correct STP role.

A manager password is configured on an ArubaOS switch. The network administrator wants to ensure managers only use SSH to connect to the ArubaOS switch for CLI access. Which step should the administrator complete to accomplish this?

• A.  Enter the commend include-credentials.
• B.  Enter the command ip ssh.
• C.  Enter the command secure-vty.
• D.  Enter the command no telnet-server.

Managers log in to an ArubaOS switch with SSH.
What does SSH require to authenticate the switch to the SSH client and set up a secure session?

• A.  a username and password set with the password manager command
• B.  a self-signed certificate configured with the crypto key commands
• C.  an SSH authorized user key, managed by the ip ssh public-key commands
• D.  an SSH key, managed by the crypto key ss commands.

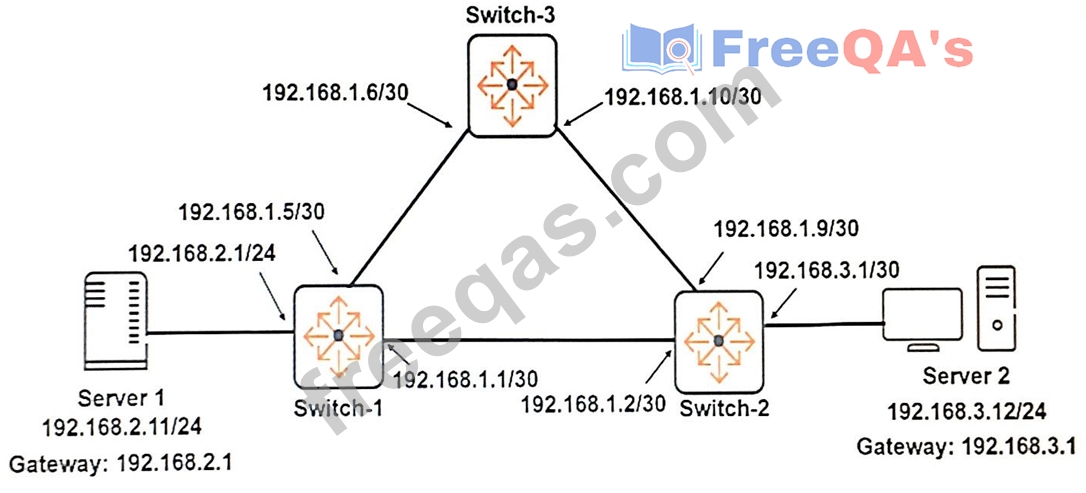

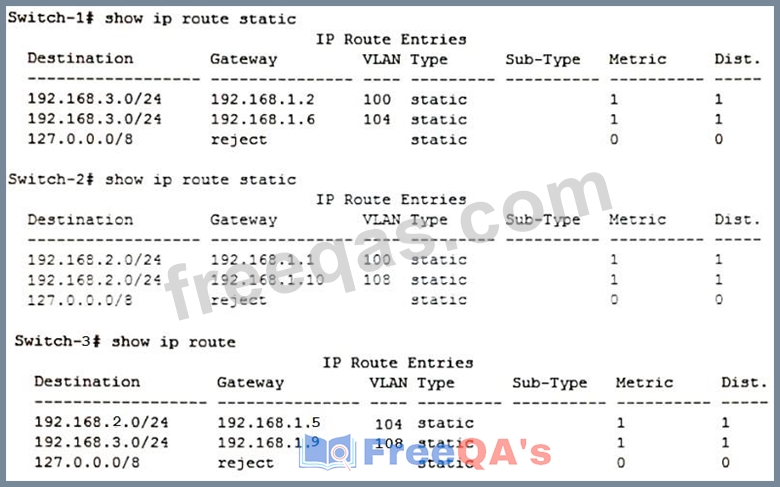

Refer to the exhibit.
Exhibit 1.

Exhibit 2.

The routing configuration must support this behavior:
What must the network administrator change to meet these criteria?

• A.  On Switch 3, add a route to 192.168.2.0/24 through 192.168.1.9 and a route to 192.168.3.0/24 through
  192.168.1.5.
• B.  On Switch-1, Switch-2, and Switch-3, change the next hop in each static route to specify an IP address that exists on that switch.
• C.  On Switch-1, add a route to 192.168.1.8/30 through 192.168.0.3; on Switch-2, add a route to
  192.168.1.4/30 through 192.168.1.1; on Switch-3, add a route to 192.168.1.0/30 through 192.169.1.4.
• D.  On Switch-1, raise the administrative distance for the second route to 192.168.3.0/24; on Switch-2, raise the administrative distance for the second route to 192.168.2.0/24
• E.  On Switch-1, add a route to 192.168.1.8/30 through 192.168.1.2; on Switch-2, add a route to
  192.168.1.4/30 through 192.168.1.1; on Switch-3, add a route to 192.168.1.0/30 through 192.168.1.4.
