Free Juniper JN0-361 Exam Dumps Questions & Answers

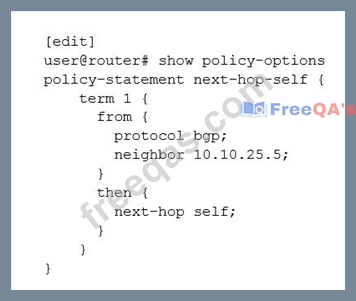

Click the Exhibit.

Your router has an external peering session to 10.10.25.5 and several internal peers. However, routes learned from EBGP peers are showing up in a hidden state on IBGP peers.
Where would you apply the policy shown in the exhibit to solve this issue?

• A.  Apply the next-hop-self as an export policy to the internal BGP peers.
• B.  Apply the next-hop-self as an export policy to the external BGP peers.
• C.  Apply the next-hop-self as an import policy to the external BGP peers.
• D.  Apply the next-hop-self as an import policy to the internal BGP peers.

What are tree types of interfaces that can be used in an MX Series device when implementing a virtual switch routing instance? (Choose three.)

• A.  Trunk interface
• B.  Layer 2 logical interface
• C.  Access interface
• D.  GRE tunnel interface
• E.  Logical tunnel interface

You are configuring a default static route using the default preference value. You want to ensure that any static route that you configure in the future will be less preferred than the OSPF routes that are configured on the network.
Which command will accomplish this task?

• A.  set routing-options static defaults passive
• B.  set protocols ospf preference 6
• C.  set routing-options static route <IP address> preference 9
• D.  set routing-options static defaults preference 20

Click the Exhibit.

Referring to the exhibit, which statement is correct about MVRP?

• A.  ES1 is not advertising VLAN 300 to AS1.
• B.  AS1's VLAN ID list is missing an entry for VLAN 300.
• C.  AS1 is not allowing ES2 access to VLAN 300.
• D.  ES2 is not interested in VLAN 300.

Which statement is true regarding default MPLS label handling?

• A.  A router that pops a label from a label stack always pushes a new label on the packet.
• B.  A router that pops a label from a label stack forwards a frame based on the label that was popped.
• C.  A router that pops a label from a label stack forwards a frame based on the underlying destination IP address.
• D.  A router that pops a label from a label stack applies class of service based on the IP header to ToS bits.
