Free Access to MuleSoft.MCIA-Level-1.v2022-09-22.q120 with Valid Practice Test (Page 2)

Question 1

The AnyAirline organization's passenger reservations center is designing an integration solution that combines invocations of three different System APIs (bookFlight, bookHotel, and bookCar) in a business transaction. Each System API makes calls to a single database.
The entire business transaction must be rolled back when at least one of the APIs fails.
What is the most idiomatic (used for its intended purpose) way to integrate these APIs in near real-time that provides the best balance of consistency, performance, and reliability?

A.Implement local transactions within each API implementation
Configure each API implementation to also participate in the same eXtended Architecture (XA) transaction Implement caching in each API implementation to improve performance
B.Implement an eXtended Architecture (XA) transaction manager in a Mule application using a Saga pattern Connect each API implementation with the Mule application using XA transactions Apply various compensating actions depending on where a failure occurs
C.Implement eXtended Architecture (XA) transactions between the API implementations Coordinate between the API implementations using a Saga pattern Implement caching in each API implementation to improve performance
D.Implement local transactions in each API implementation
Coordinate between the API implementations using a Saga pattern
Apply various compensating actions depending on where a failure occurs

Question 2

A mule application uses an HTTP request operation to involve an external API.
The external API follows the HTTP specification for proper status code usage.
What is possible cause when a 3xx status code is returned to the HTTP Request operation from the external API?

A.The request was Redirected to a different URL by the external API
B.The request was NOT RECEIVED by the external API
C.The request was ACCEPTED by the external API
D.The request was not accepted by the external API

Question 3

An integration Mute application is being designed to process orders by submitting them to a backend system for offline processing. Each order will be received by the Mute application through an HTTPS POST and must be acknowledged immediately. Once acknowledged, the order will be submitted to a backend system. Orders that cannot be successfully submitted due to rejections from the backend system will need to be processed manually (outside the backend system).
The Mule application will be deployed to a customer-hosted runtime and is able to use an existing ActiveMQ broker if needed.
The backend system has a track record of unreliability both due to minor network connectivity issues and longer outages.
What idiomatic (used for their intended purposes) combination of Mule application components and ActiveMQ queues are required to ensure automatic submission of orders to the backend system, while minimizing manual order processing?

A.An On Error scope Non-persistent VM ActiveMQ Dead Letter Queue for manual processing
B.An On Error scope MuleSoft Object Store ActiveMQ Dead Letter Queue for manual processing
C.Until Successful component MuleSoft Object Store ActiveMQ is NOT needed or used
D.Until Successful component ActiveMQ long retry Queue ActiveMQ Dead Letter Queue for manual processing

Correct Answer: D

Correct answer is using below set of activities Until Successful component ActiveMQ long retry Queue ActiveMQ Dead Letter Queue for manual processing We will see why this is correct answer but before that lets understand few of the concepts which we need to know. Until Successful Scope The Until Successful scope processes messages through its processors until the entire operation succeeds. Until Successful repeatedly retries to process a message that is attempting to complete an activity such as: - Dispatching to outbound endpoints, for example, when calling a remote web service that may have availability issues. - Executing a component method, for example, when executing on a Spring bean that may depend on unreliable resources. - A sub-flow execution, to keep re-executing several actions until they all succeed, - Any other message processor execution, to allow more complex scenarios. How this will help requirement : Using Until Successful Scope we can retry sending the order to backend systems in case of error to avoid manual processing later. Retry values can be configured in Until Successful Scope Apache ActiveMQ It is an open source message broker written in Java together with a full Java Message Service client ActiveMQ has the ability to deliver messages with delays thanks to its scheduler. This functionality is the base for the broker redelivery plug-in. The redelivery plug-in can intercept dead letter processing and reschedule the failing messages for redelivery. Rather than being delivered to a DLQ, a failing message is scheduled to go to the tail of the original queue and redelivered to a message consumer. How this will help requirement : If backend application is down for a longer duration where Until Successful Scope wont work, then we can make use of ActiveMQ long retry Queue. The redelivery plug-in can intercept dead letter processing and reschedule the failing messages for redelivery. Mule Reference: https://docs.mulesoft.com/mule-runtime/4.3/migration-core-until-successful

Question 4

Refer to the exhibit.

A Mule application is deployed to a cluster of two customer-hosted Mute runtimes. TheMute application has a flow that polls a database and another flow with an HTTP Listener.
HTTP clients send HTTP requests directly to individual cluster nodes.
What happens to database polling and HTTP request handling in the time after the primary (master) node of the cluster has railed, but before that node is restarted?

A.Database polling stops All HTTP requests are rejected
B.Database polling stops All HTTP requests continue to be accepted
C.Database pollingcontinues All HTTP requests continue to be accepted, but requests to the failed node Incur increased latency
D.Database polling continues Only HTTP requests sent to the remaining node continue to be accepted

Question 5

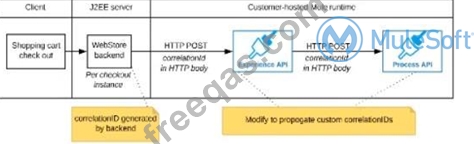

Refer to the exhibit.

Ashopping cart checkout process consists of a web store backend sending a sequence of API invocations to an Experience API, which in turn invokes a Process API. All API invocations are over HTTPS POST. The Java web store backend executes in a Java EE application server, while all API implementations are Mule applications executing in a customer -hosted Mule runtime.
End-to-end correlation of all HTTP requests and responses belonging to each individual checkout Instance is required. This is to be done througha common correlation ID, so that all log entries written by the web store backend, Experience API implementation, and Process API implementation include the same correlation ID for all requests and responses belonging to the same checkout instance.
What is the most efficient way (using the least amount of custom coding or configuration) for the web store backend and the implementations of the Experience API and Process API to participate in end-to-end correlation of the API invocations for each checkout instance?
A)
The web store backend, being a Java EE application, automatically makes use of the thread-local correlation ID generated by the Java EE application server and automatically transmits that to the Experience API using HTTP-standard headers No special code or configuration is included in the web store backend, Experience API, and Process API implementations to generate and manage the correlation ID

B)
The web store backend generates a new correlation ID value at the start of checkout and sets it on the X-CORRELATlON-lt HTTP request header In each API invocation belonging to that checkout No special code or configuration is included in the Experience API and Process API implementations to generate and manage the correlation ID

C)
The Experience API implementation generates a correlation ID for each incoming HTTP request and passes it to the web store backend in the HTTP response, which includes it in all subsequent API invocations to the Experience API.
The Experience API implementation must be coded to also propagate the correlation ID to the Process API in a suitable HTTP request header

D)
The web store backend sends a correlation ID value in the HTTP request body In the way required by the Experience API The Experience API and Process APIimplementations must be coded to receive the custom correlation ID In the HTTP requests and propagate It in suitable HTTP request headers

A.Option C
B.Option A
C.Option D
D.Option B
