Which of the following will cause an event to be captured by the LabVIEW Event Structure?

• A.Changing a value on a Front Panel control via a mouse click
• B.Update of a Front Panel control using a property node
• C.Using VI Server to update a Front Panel control
• D.Programmatic update of a Front Panel control via a control reference

Comment: *

Name: *

Email: *

Verification: *

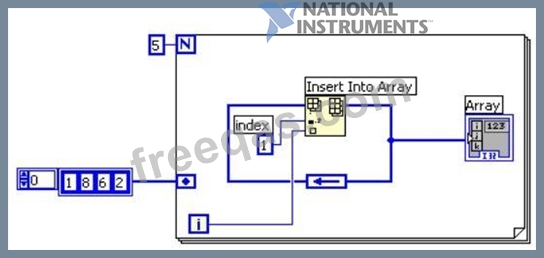

What is the result in Array after the following code has executed?

• A.A 1-D array of {1, 4, 3, 2, 1, 0, 8, 6, 2}
• B.A 1-D array of {1, 4, 3, 2, 1, 0}
• C.A 1-D array of {1, 8, 0, 1, 2, 3, 4, 6, 2}
• D.A 1-D array of {1, 8, 0, 1, 2, 2, 9}

Comment: *

Name: *

Email: *

Verification: *

Which of the following statements is false?

• A.You must have an icon/connector to use a SubVI
• B.The color of a SubVI connector pane terminal matches the data type it is connected to
• C.A SubVI connector pane defines where to wire inputs and outputs
• D.A SubVI icon can be edited from the functions palette

Comment: *

Name: *

Email: *

Verification: *

Which of the following statements is true regarding the use of Coercion Dots?

• A.Both B and C.
• B.Coercion Dots increases memory usage
• C.Both A and B.
• D.Coercion Dots represent a conversion from one data type to another.
• E.Coercion Dots improve program performance.
