What is the semantic difference between the two figures in the exhibit?

• A.  One is a UML 2.0 diagram, while other is a UML 1.5 diagram.
• B.  One is a deployment diagram, while the other is a class diagram.
• C.  One is a white-box view, while the other is a black-box view.
• D.  There is no semantic difference.

CORRECT TEXT
Which is a correct representation of multiple extension and generalization/specialization?
(Choose two)

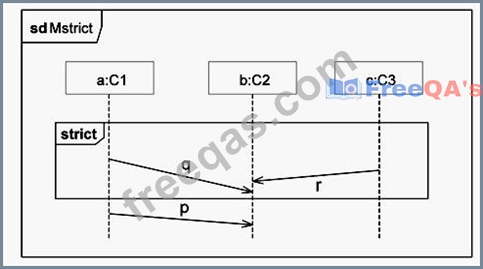

In the exhibit, what is true about Mstrict?

• A.  Sending r precedes sending p in all legal traces.
• B.  Within the strict combined fragment, sending a signal will immediately be followed by the reception of that signal.
• C.  Sending q precedes reception of r in all legal traces.
• D.  The whole Mstrict has only one legal trace.

Which list contains only connectable elements?

• A.  property, port, and parameter
• B.  port and connector end
• C.  behavior, connector end, and port
• D.  behavior, port and property
• E.  connector end, port and part

What does a conditional node consist of?

• A.  partitions
• B.  clauses
• C.  parameters
• D.  behaviors
• E.  bodyPart nodes
• F.  guards
