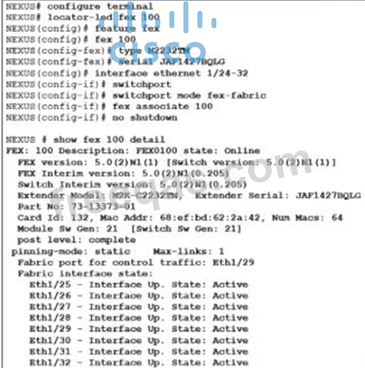

Refer to the exhibit.

An engineer must distribute all the host ports to use all eight configured FEX uplinks. The solution must minimize disruption if an uplink fails Which action accomplishes this objective?

• A.Statically assign each host interface to a fabric uplink
• B.Change the supported FEX type
• C.Configure the eight uplinks in a port channel
• D.Set the pinning max-links value to 8

Comment: *

Name: *

Email: *

Verification: *

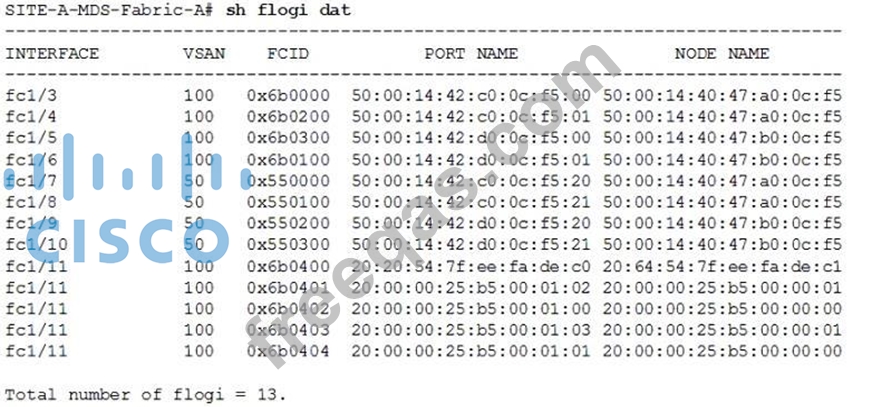

Refer to the exhibit. An engineer must configure a Fibre Channel device alias named TEST for a device attached to port fc1/9 of a Cisco Nexus Series Switch. Which command set completes the configuration?

• A.SITE-A-MDS-Fabric-A# configure terminal
  SITE-A-MDS-Fabric-A (config)# device-alias database
  SITE-A-MDS-Fabric-A (config-device-alias-db)# device-alias name TEST pwwn
  50:00:14:42:d0:0 c:f5:20
  SITE-A-MDS-Fabric-A (config-device-alias-db)# exit
• B.SITE-A-MDS-Fabric-A# configure terminal
  SITE-A-MDS-Fabric-A (config)# device-alias database
  SITE-A-MDS-Fabric-A (config-device-alias-db)# device-alias name TEST pwwn
  50:00:14:40:47:b0:0 c:f5
  SITE-A-MDS-Fabric-A (config-device-alias-db)# device-alias commit
• C.SITE-A-MDS-Fabric-A# configure terminal
  SITE-A-MDS-Fabric-A (config)# device-alias database
  SITE-A-MDS-Fabric-A (config-device-alias-db)# device-alias name TEST pwwn
  50:00:14:42:d0:0 c:f5:20
  SITE-A-MDS-Fabric-A (config-device-alias-db)# device-alias commit
• D.SITE-A-MDS-Fabric-A# device-alias database
  SITE-A-MDS-Fabric-A (config-device-alias-db)# device-alias name TEST pwwn
  50:00:14:40:47:b0:0 c:f5
  SITE-A-MDS-Fabric-A (config-device-alias-db)# device-alias commit

Comment: *

Name: *

Email: *

Verification: *

An engineer is implementing OTV on a transport that supports multicast. The solution needs to meet the following requirements:
* Establish adjacency to the remote peer by using multicast.
* Enable OTV advertisements for VLAN 100 to the other site.
Which two commands should be configured to meet these requirements? (Choose two.)

• A.otv data-group 232.2.2.0/28
• B.otv control-group 232.1.1.1
• C.otv use-adjacency-server 172.27.255.94
• D.otv extend-vlan 100
• E.otv site-vlan 100

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. What happens to the broadcast traffic when it reaches aggregation switches?

• A.Only Agg-1 switch receives broadcast packets and does not forward to the peer link on Agg-2 switch.
• B.Agg-1 switch prevents broadcast packets received on the vPC peer link from exiting the switch on ports Eth2M and Eth2/5
• C.Agg-2 switch receives broadcast packets and stops forwarding to the peer link on Agg-1 switch.
• D.Agg1 and Agg2 switches receive broadcast packets and does not forward them to me peer link or the port channel

Comment: *

Name: *

Email: *

Verification: *

What is a characteristic of the NFS protocol?

• A.It uses remote procedure calls with TCP/IP for transport.
• B.It uses UDP and HTTP as its transport.
• C.It is used for booting Cisco UCS B-Series servers.
• D.It is used to access a storage array at a block level.
