Which command will identify the active LTM device currently handling client traffic?

• A.tmsh run /sys failover standby
• B.b ha table show
• C.tmsh show /cm traffic-group
• D.tmsh show /sys ha-status all-properties
• E.tmsh list /sys ha-status

Comment: *

Name: *

Email: *

Verification: *

-- Exhibit -

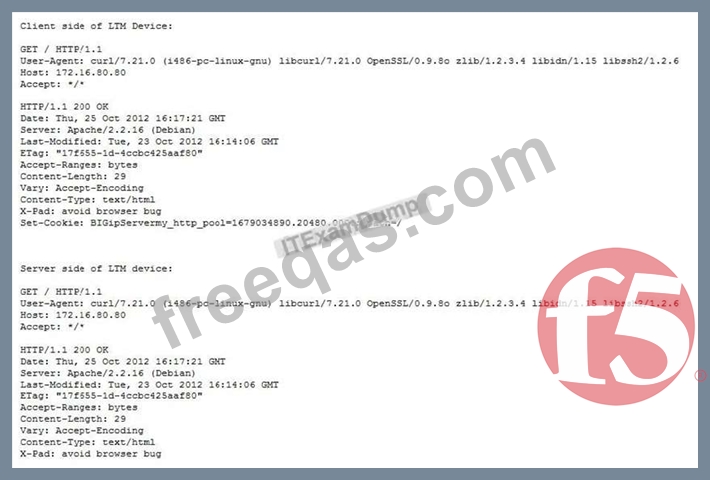

-- Exhibit -Refer to the exhibit.
A web application is configured to allow sessions to continue even after a user computer is shut down for the night. A new LTM device is configured to load balance the web application to several servers. The application owner reports that application users are logged out of the web application whenever their browser is restarted or computer is rebooted.
What is the problem?

• A.The virtual server does NOT have persistence mirroring configured.
• B.The cookie set by the LTM device does NOT have an "Expires" value.
• C.The cookie set by the server is NOT being passed to client by the LTM device.
• D.The virtual server does NOT have persistence configured.

Comment: *

Name: *

Email: *

Verification: *

-- Exhibit -


-- Exhibit -

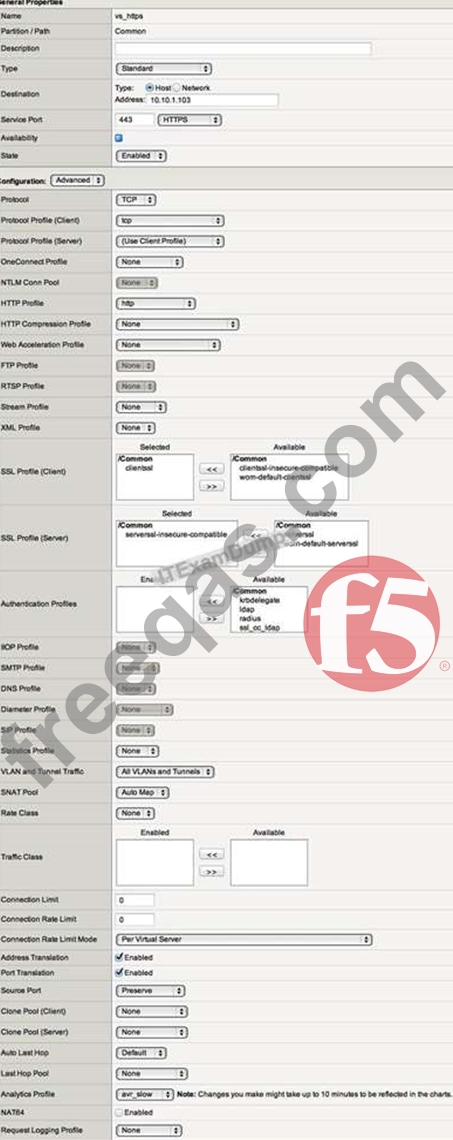

Refer to the exhibits.
When observing the AVR statistics for the HTTPS_VS, an LTM Specialist realizes that HTTP status codes are NOT being recorded.
How should the LTM Specialist modify the configuration to record the HTTP status codes?

• A.enable Collected Entities, Response Codes on the analytics profile
• B.assign a streaming profile to the virtual server
• C.assign client SSL and server SSL profiles to the virtual server
• D.enable Statistics Logging Type, External on the analytics profile

Comment: *

Name: *

Email: *

Verification: *

-- Exhibit --- Exhibit -Refer to the exhibit.

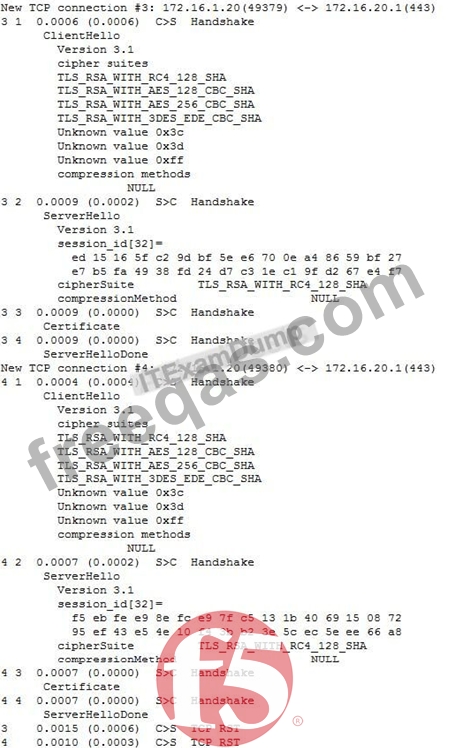

A company uses a complex piece of client software that connects to one or more virtual servers (VS) hosted on an LTM device. The client software is experiencing issues. An LTM Specialist must determine the cause of the problem. The LTM Specialist has the tcpdump extract. The client loses connection with the LTM device.
Where is the reset originating?

• A.the destination device of the initial connection
• B.the local switch
• C.the application server
• D.the device initiating the connection

Comment: *

Name: *

Email: *

Verification: *

-- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is reviewing the 'test' partition.
Which objects, in order, can be removed from the partition?

• A.delete pool test1_pool, delete node 10.1.1.2, delete node 10.1.1.1
• B.delete node 10.1.1.2, delete pool test2_pool
• C.delete pool test1_pool, delete pool test2_pool, delete node 10.1.1.3
• D.delete pool test1_pool, delete node 10.1.1.2
• E.delete virtual test1_vs, delete pool test2_pool, delete node 10.1.1.1
