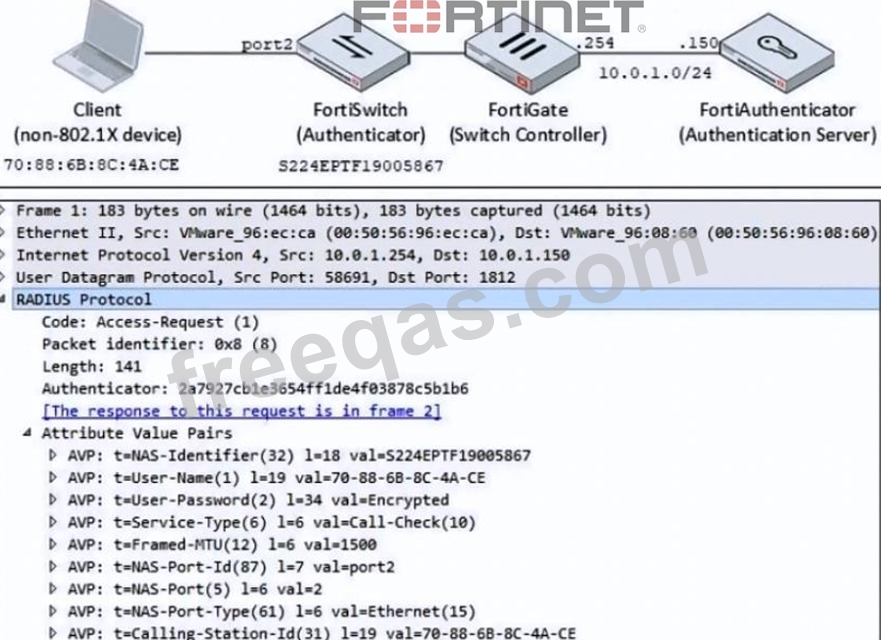

Refer to the exhibit. Examine the network diagram and packet capture shown in the exhibit.
The packet capture was taken between FortiGate and FortiAuthenticator, and shows a RADIUS Access-Request packet sent by FortiSwitch to FortiAuthenticator through FortiGate.
Why does the User-Name attribute in the RADIUS Access-Request packet contain the client MAC address?
Which FortiSwitch VLANs are automatically created on FortGate when the first FortiSwitch device is discovered1?
An administrator has deployed multiple dual-band wireless APs in a wireless network. APs are installed at measured distances to ensure fast roaming for the clients. Multiple 2.4 GHz-only wireless clients are connecting to the network, and subsequent monitoring shows that individual AP 2.4 GHz interfaces are being overloaded with wireless connections.
Which configuration change would best resolve the overloading issue?

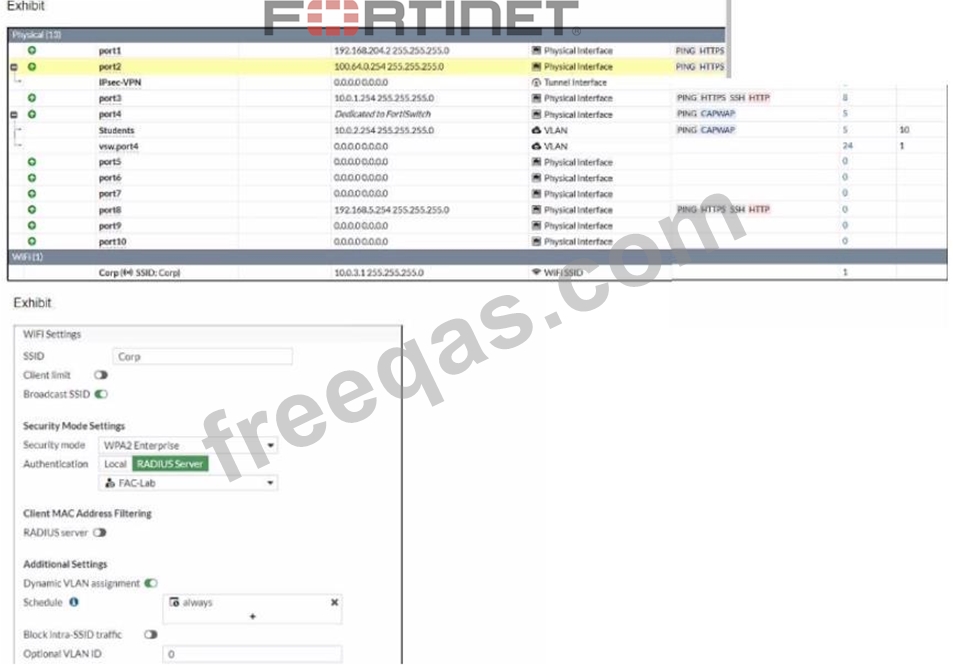

Refer to the exhibits.
An administrator has configured FortiGate with an SSID (Corp) with dynamic VLAN assignment, and also configured a RADIUS server to send IETF 64, IETF 65, and IETF 81 VSAs.
The administrator has verified that the RADIUS server is sending all the required information to FortiGate.
However, FortiGate is not assigning correct VLANs to the wireless clients.
What is causing the problem?

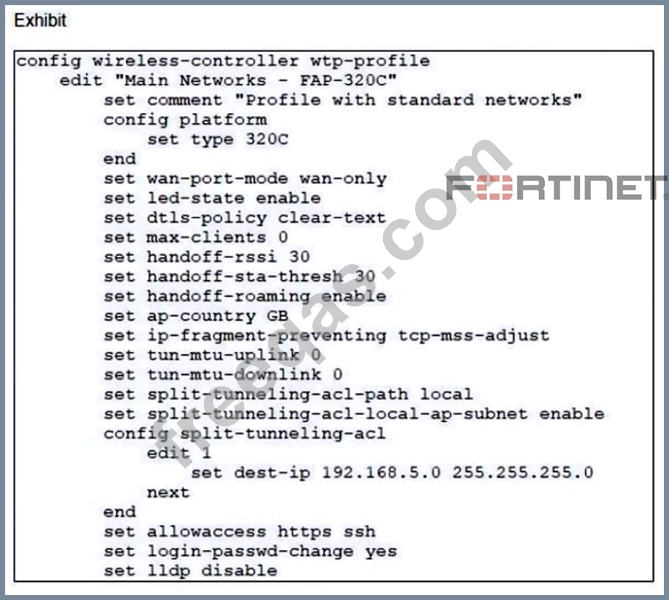

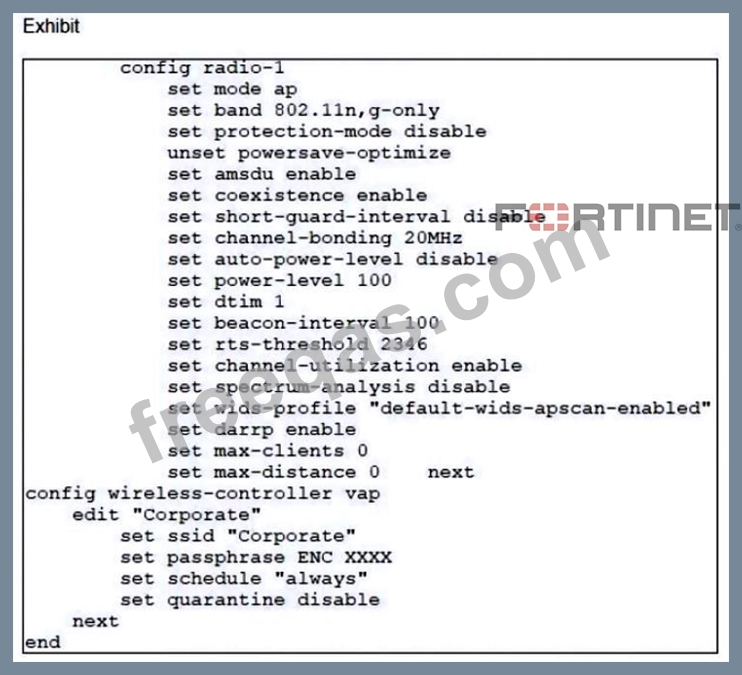

Refer to the exhibit. In the wireless configuration shown in the exhibits, an AP is deployed in a remote site and has a wireless network (VAP) called Corporate deployed to it. The network is a tunneled network however clients connecting to a wireless network require access to a local printer. Clients are trying to print to a printer on the remote site but are unable to do so.
Which configuration change is required to allow clients connected to the Corporate SSID to print locally?
