When an 802.IX client uses MDS encryption, the user authentication mode can be set to EAP or CHAP on the device. When an 802. IX client uses PEAP authenticatwn, the user authentication mode can be set to______on the device. (Enter the acronym in uppercase letters.)

Comment: *

Name: *

Email: *

Verification: *

iMaster NCE-Campuslnsight comprehensively analyzes WLAN client access, displays success rates and time consumption of association, --------, and DHCP. It also provides issue analysis and optimization suggestions.
(Enter lowercase letters.)

Comment: *

Name: *

Email: *

Verification: *

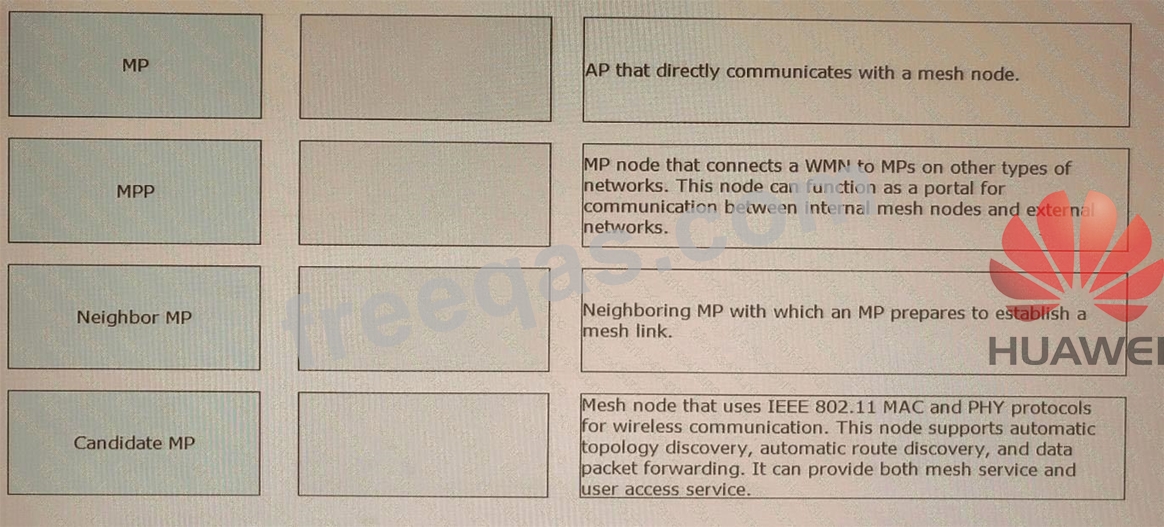

In mesh networking, APs have different roles. Drag the AP roles on the left to the role descriptions on the right.

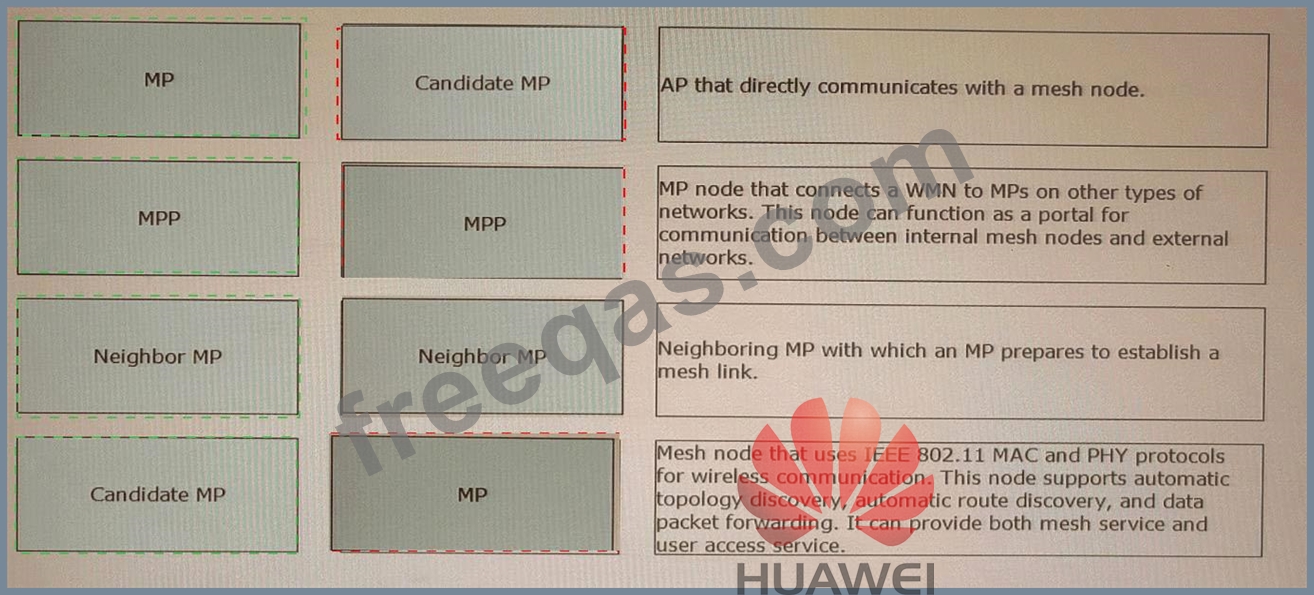

Correct Answer:

Explanation:
* MP: Mesh node that uses IEEE 802.11 MAC and PHY protocols for wireless communication. This node supports automatic topology discovery, automatic route discovery, and data packet forwarding. It can provide both mesh service and user access service 1 .
* MPP: MP node that connects a WMN to MPs on other types of networks. This node can function as a portal for communication between internal mesh nodes and external networks 1 .
* Neighbor MP: Neighboring MP with which an MP prepares to establish a mesh link 1 .
* Candidate MP: AP that directly communicates with a mesh node 2 .
https://support.huawei.com/enterprise/en/doc/EDOC1100064365/90f2391e/configuration-examples-for-mesh
2 : https://support.huawei.com/enterprise/en/doc/EDOC1100169459/8d79210e/configuring-wireless-mesh- networking

Comment: *

Name: *

Email: *

Verification: *

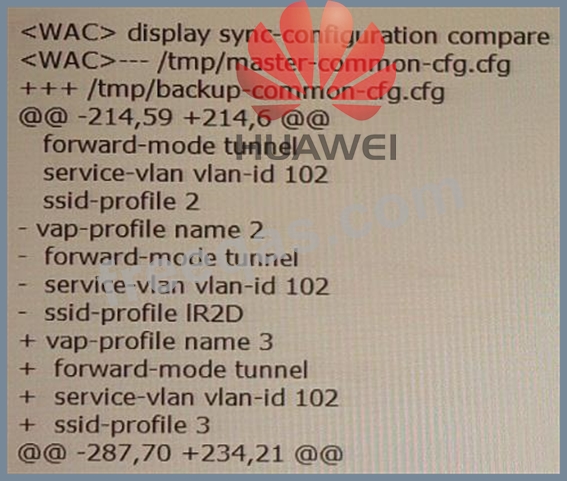

The display sync-configuration compare command is executed on the backup WAC in HSB to check wireless configuration synchronization. Based on the command output, which of the following statements are true?
(Select All that apply)

• A.This command is used to check whether the public configurations on two WACs are consistent after wireless configuration synchronization.
• B.The configuration of ssid-profile 2 exists on both the master and backup WACs.
• C.The configuration of vap-profile name 3 exists on the master WAC but not on the backup WAC.
• D.The configuration of vap-profile name 2 exists on the backup WAC but not on the master WAC.

Comment: *

Name: *

Email: *

Verification: *

AD authentication integrates Kerberos authentication into LDAP authentication. The basic AD architecture consists of the user, AD client, and AD server. Which of the following are components of an A3 server?

• A.Key distribution center
• B.LDAP server
• C.Authorization server
• D.Accounting server
