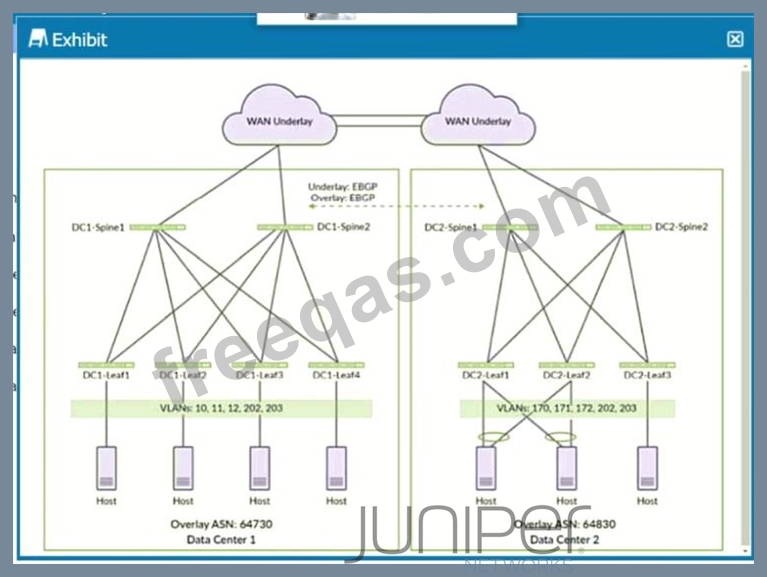

Exhibit.

The two data centers shown in the exhibit need to be connected using EVPN.
Which two statements are correct in this situation? (Choose two.)

• A.Hosts in VLAN 10 can communicate with hosts in Data Center 2 using Layer 2.
• B.Hosts in VLAN 202 can communicate using Layer 3 between data centers.
• C.Hosts in VLAN 202 can communicate using Layer 2 between data centers.
• D.Hosts in VLAN 10 can communicate with hosts in Data Center 2 using Layer 3.

Comment: *

Name: *

Email: *

Verification: *

You are designing a network for a small data center.
In this scenario, which underlay protocol allows for the simplest implementation?

• A.OSPF
• B.IGGP
• C.MPLS
• D.EBGP

Comment: *

Name: *

Email: *

Verification: *

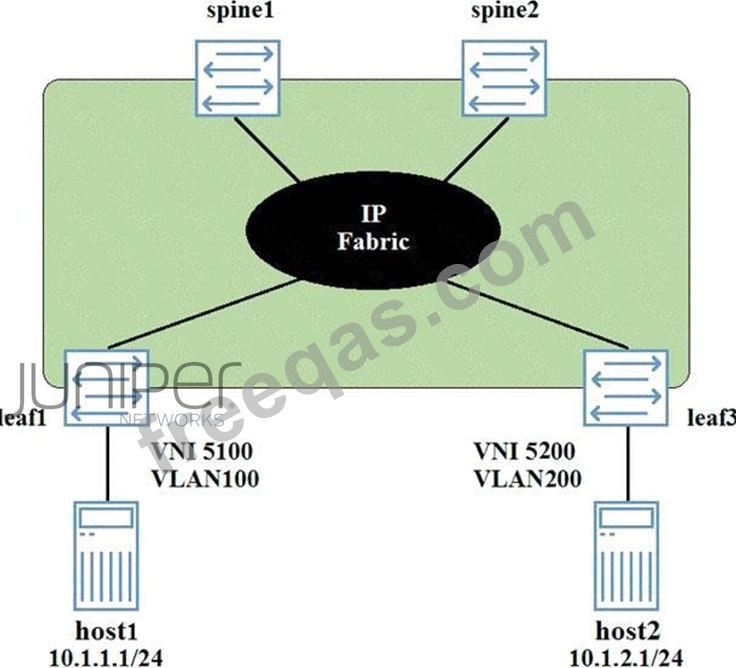

Host1 and host2 are connected to an EVPN signaled VXLAN overlay, and must have Layer 3 connectivity.
The VNI and VLAN assignments are shown in the exhibit.

In this scenario, which two statements are true? (Choose two.)

• A.The ESI assigned to the host1 link will be different from the ESI assigned to the host link.
• B.A Layer 3 gateway can be configured on the leaf devices.
• C.The VNI assigned to the host1 link must be same as the VNI assigned to the host2 link.
• D.A layer 3 gateway can be configured on the spine devices.

Comment: *

Name: *

Email: *

Verification: *

You are asked to configure VXLAN for you c data center using multicast to exchange VTEP information?
In this scenario, which two configuration parameters must match on the VTEPs in the same VXLAN segment? (Choose two.)

• A.VLAN ID
• B.Routing instance name
• C.Multicast group
• D.VNI

Comment: *

Name: *

Email: *

Verification: *

A customer wants to connect two data centers on different subnets using EVPN. What are two implications of using different IP subnets at each site? (Choose two.)

• A.Using different IP subnets at each site allows Layer 3 gateways to exchange only type-3 routes.
• B.MAC addresses will not need to be advertised between the data centers.
• C.MAC addresses will need to be advertised between the data centers.
• D.Using different IP subnets at each site allows Layer 3 gateways to exchange only type-5 routes.
