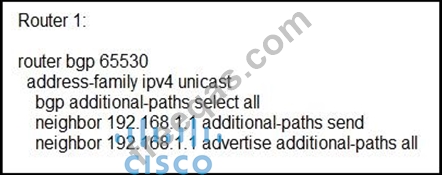

Refer to the exhibit.

Which statement about this configuration is true?

• A.Router 1 sends up to two paths to neighbor 192.168.1.1 for all routes
• B.Router 1 receives up to two paths from neighbor 192.168.1.1 for all routes in the same AS
• C.Router 1 receives only the best path from neighbor 192.168.1.1
• D.Router 1 sends and receives multiple best paths from neighbor 192.168.1.1

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

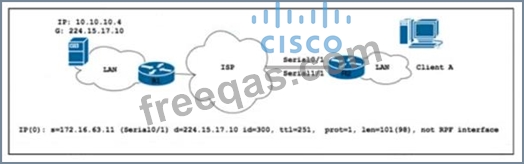

Refer to the exhibit. Mid-sized company Z connected two branch offices via a multicast-enabled ISP using the BGP routing protocol. PIM was implemented to support multicast streaming between the branches via MSDP Client A cannot connect to the multicast stream source of company Z. The network engineer ran a debug on the edge of the network as shown. Which action resolves the issue?

• A.Configure the PIM protocol on the Serial 1/1 interface and enable Auto-RP
• B.Deploy BSR on routers R1 and R2 and enable multicast on both LAN segments.
• C.Enable the BGP routing protocol and advertise the 10 10.10.0/24 subnet on R1.
• D.Implement MBGP and enable a multicast address family on R2

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

After troubleshooting an OSPF adjacency issue, routers 1, 2, and 3 have formed OSPF neighbor relationships. Which statement about the configuration is true?

• A.Router 2 uses router 1 as the next hop for 192.168.0.0/24
• B.Router 2 receives a Type 5 LSAs from router 1 for its connected subnets
• C.Router 2 receives a Type 7 LSAs from router 3 for its connected subnets
• D.Router 2 uses router 3 as the next hop for 192.168.0.0/24

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. Company A established BGP sessions with several ISPs. A network engineer at the company must filter out all traffic except for routes that transit AS 152. The engineer configured the filtering policy "permit _152$_(_[0-9])" on R1, but after applying the configuration, the engineer notices that other routes are still visible. Which action resolves the issue?

• A.Change the filtering policy to ip as-path access-list 1 permit _152_.
• B.Change the filtering policy to ip explicit-path 1 permit $152^.
• C.Add a second filtering policy in the format ip prefix-list 1 permit ^152^.
• D.Add a second filtering policy in the format ip access-list 1 permit ^152_([0-9]+).

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

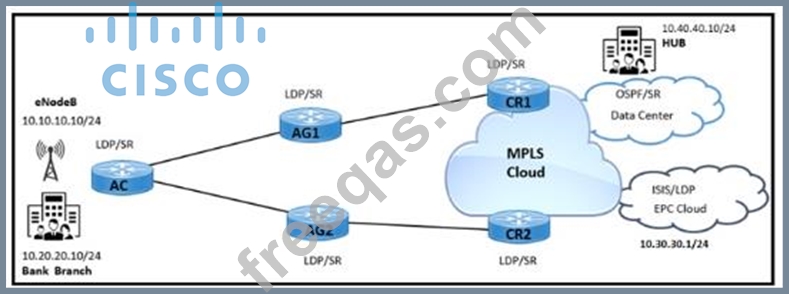

Refer to the exhibit. A service provider has LDP and segment routing running in the network. Mobility traffic is carried through LDP and enterprise traffic is carried through segment routing. Which configuration must be implemented to connect the bank branch with the HUB site on routers?

• A.Enable segment-routing Mpls Sr-prefer on AG1 and AG2 routers for 10.0.0.0/8.
• B.Configure segment-routing Sr-prefer prefix-list on AG1 and AG2 router for 10.10.10.10/24.
• C.Enable segment-routing Mpls Sr-prefer on CR1 and CR2 routers for 10.0.0.0/8.
• D.Configure segment-routing sr-prefer prefix-list on CR1 and CR2 routers for 10.20.20.10/24.
