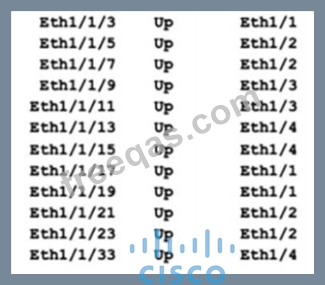

Refer to the exhibit.


A network engineer needs to capture traffic from the VMs that utilize the IOM host interface Eth1/1/23 of a Cisco UCS B-Series chassis. A traffic analyzer is used to get traffic captured from the Eth1/4 interface of the subordinate fabric interconnect. The network engineer notices that traffic is not captured on the traffic analyzer. Which action resolves the issue?

• A.Span the traffic from the Eth 1/2 of the subordinate fabric interconnect.
• B.Span the traffic from the Eth 1/4 of the subordinate fabric interconnect.
• C.Span the traffic from the Eth 1/2 of the primary fabric interconnect.
• D.Span the traffic from the Eth 1/4 of the primary fabric interconnect.

Comment: *

Name: *

Email: *

Verification: *

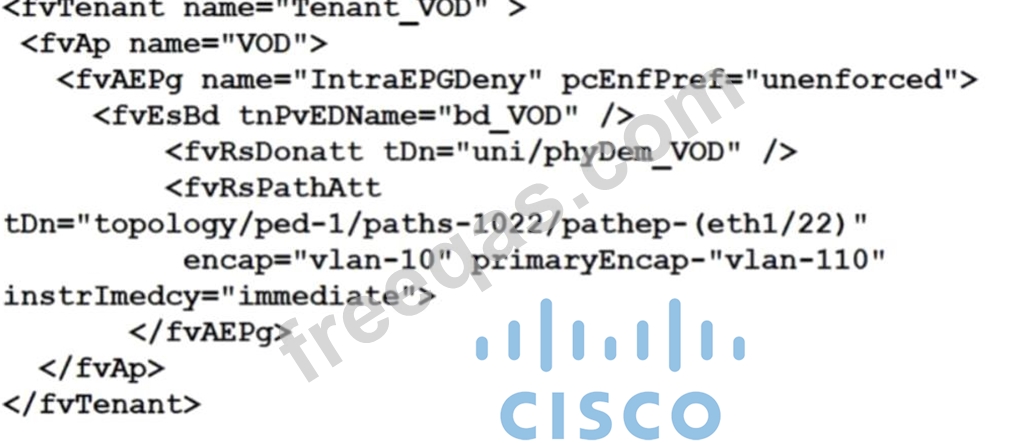

Refer to the exhibit.

Refer to the exhibit. customer reports that all Intra-EPG isolation stopped working within a bare-metal tenant. Postman is running on a machine to get information from the APIC in case of orchestration failure. Which action resolves the issue?.

• A.Modify the GET command to reference the valid path for the managed object
• B.Change pcEnfPref="unenforced" to pcEnfPref="enforced".
• C.Remove primaryEncap="vlan-110" from the specific port path.
• D.Match encap="vlan-10" and primaryEncap="vlan-110"

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

A network engineer finds one of the fabric interconnects offline when connecting L1 and L2 ports on both fabric interconnects. Which action resolves the issue?

• A.1. Connect to Fabric Interconnect B.
  2. Verify the cluster status and HA election.
  3. Validate Fabric Interconnect B hardware issues.
• B.1. Connect to Fabric Interconnect A.
  2. Verify the cluster status and HA election.
  3. Validate Fabric Interconnect A hardware issues.
• C.1. Connect Fabric Interconnect B and execute "Erase configuration"
  2. Reboot Fabric Interconnect B.
  3. Add the subordinate Fabric Interconnect to the cluster.
• D.1. Connect Fabric Interconnect B and change the role to primary.
  2. Reboot Fabric Interconnect B.
  3. Add the Fabric Interconnect A as subordinate fabric to the cluster.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

All servers that must boot from the network fail to receive their DHCP addresses and download the configuration. After close examination, an engineer discovers that all interfaces connected to the affected servers are down with the message " No LACP PDU. " Which command set resolves the issue?

• A.int eth1/2
  lacp port-priority 1
• B.int po13
  no lacp suspend-individual
• C.interface po13
  no lacp graceful-convergence
• D.int eth1/2
  lacp rate fast

Comment: *

Name: *

Email: *

Verification: *

An attempt to use a global vNIC redundancy template pair results in a service profile that fails to apply.
Which action resolves the issues?

• A.Create the peer names before creating the templates.
• B.Assign the secondary template first, and then set the peer name.
• C.Assign both templates simultaneously.
• D.Assign the primary template first, and then set the peer name.
