A virtual server for a set of web services is constructed on an LTM device. The LTM Specialist has created an iRule and applied this iRule to the virtual server:
when HTTP_REQUEST {
switch [HTTP::uri] {
"/WS1/ws.jsp" {
log local0. "[HTTP::uri]-Redirected to JSP Pool"
pool JSP
}
default { log local0. "[HTTP::uri]-Redirected to Non-JSP Pool"
pool NonJSP
}
}
}
However, the iRule is NOT behaving as expected. Below is a snapshot of the log:
/WS1/ws.jsp-Redirected to JSP Pool
/WS1/ws.jsp-Redirected to JSP Pool
/WS1/ws.jsp-Redirected to JSP Pool
/WS1/WS.jsp-Redirected to Non-JSP Pool
/ws1/WS.jsp-Redirected to Non-JSP Pool
/WS1/ws.jsp-Redirected to JSP Pool
/ws1/ws.jsp-Redirected to Non-JSP Pool
What is the problem?

• A.The "Process Case-Insensitivity" option for the virtual server needs to be selected.
• B.The 'switch' command in the iRule has been used incorrectly.
• C.The condition in the iRule is case sensitive.
• D.The pool members of both pools need to be set up as case-insensitive members.

Comment: *

Name: *

Email: *

Verification: *

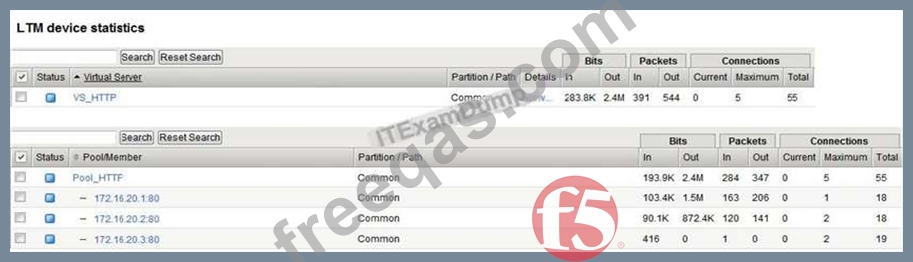

-- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is investigating intermittent page load issues being reported by users.
What should the LTM Specialist do to resolve the issue?

• A.Assign an HTTP monitor to the pool.
• B.Select least connections load balancing method on virtual server.
• C.Remove least connections load balancing method on virtual server.
• D.Remove HTTP monitor on the pool.

Comment: *

Name: *

Email: *

Verification: *

The output of a tmsh command is: ------------------------------------------------------------ Net::Interface Name Status Bits Bits Errs Errs Drops Drops Colli In Out In Out In Out sions
------------------------------------------------------------ 1.1 down 0 0 0 0 0 0 0 1.2 up 191.4K 0 0 0 374 0 0 1.3 down
0 0 0 0 0 0 0 1.4 up 22.5K 0 0 0 44 0 0 2.1 miss 0 0 0 0 0 0 0 2.2 miss 0 0 0 0 0 0 0 mgmt up 43.2G
160.0G 0 0 0 0 0
Which command was executed on the LTM device to show the output?

• A.tmsh /net show interface status
• B.tmsh show /net interface status
• C.tmsh show /net interface
• D.tmsh /net show interface

Comment: *

Name: *

Email: *

Verification: *

An LTM Specialist with the Administrator role and terminal access of "tmsh" logs in via ssh and is in the Traffic Manager Shell. The LTM Specialist wants to enter the bash shell to review log files.
Which command does the LTM Specialist need to run to access the bash shell?

• A.quit
• B.run /util bash
• C.exit
• D.run /cli bash

Comment: *

Name: *

Email: *

Verification: *

An application is configured on an LTM device:
Virtual server: 10.0.0.1:80 (VLAN vlan301)
SNAT IP: 10.0.0.1
Pool members: 10.0.1.1:8080, 10.0.1.2:8080, 10.0.1.3:8080 (VLAN vlan302) Which packet capture should the LTM Specialist perform on the LTM device command line interface to capture only server traffic specifically for this application?

• A.tcpdump -ni 0.0:nnn -s 0 '(port 80 and host 10.0.0.1) or (port 8080 and host 10.0.1.1 or host 10.0.1.2 or host 10.0.1.3)' -w /var/tmp/trace.cap
• B.tcpdump -ni vlan301 -s 0 'port 80 and host 10.0.0.1' -w /var/tmp/trace.cap
• C.tcpdump -ni vlan302 -s 0 'port 8080 and (host 10.0.1.1 or host 10.0.1.2 or host 10.0.1.3)' -w /var/tmp/ trace.cap
• D.tcpdump -ni 0.0:nnn -s 0 'host 10.0.0.1' -w /var/tmp/trace.cap
