An LTM Specialist is troubleshooting an HTTP monitor. The pool member is accessible directly through a browser, but the HTTP monitor is marking the pool member as down.
GET / HTTP/1.1
HTTP/1.1 400 Bad Request
DatE. Tue, 23 Oct 2012 21:39:07 GTM
Server: Apache/2.2.22 (FreeBSD) PHP/5.4.4
mod_ssl/2.2.22 OpenSSL/0.9.8q DAV/2
Content-LengtH. 226
Connection: close
Content-TypE. text/html; charset=iso-8859-1
How should the LTM Specialist resolve this issue?

• A.Change the interval on the monitor from 5 seconds to 30 seconds.
• B.Add 'Connection: close\r\n' to the monitor's send string.
• C.Change the HTTP version in the send string from HTTP/1.1 to HTTP/1.0.
• D.Add '200 OK' to the monitor's receive string.

Comment: *

Name: *

Email: *

Verification: *

-- Exhibit- -- Exhibit -

Refer to the exhibits.
An LTM Specialist configures a virtual server for an internal application to perform client-side encryption while allowing the server-side traffic to be unencrypted. Application users report that images are NOT loading through the virtual server; however, images load when going directly to the server.
What should the LTM Specialist configure to allow the images to load through the virtual server?

• A.HTTP profile with "SSL Offload" disabled
• B.HTTP profile with "SSL Offload" enabled
• C.Stream profile with source "http:" and target "https:"
• D.Stream profile with target "http:" and source "https:"

Comment: *

Name: *

Email: *

Verification: *

-- Exhibit -

-- Exhibit --

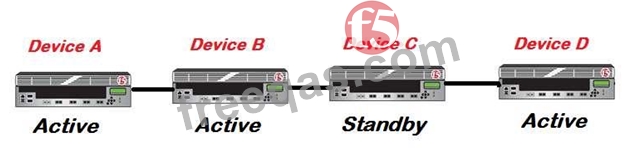

Refer to the exhibit.
An LTM Specialist is upgrading the LTM devices.
Which device should be upgraded first?

• A.Device A
• B.Device D
• C.Device B
• D.Device C

Comment: *

Name: *

Email: *

Verification: *

An LTM Specialist is receiving reports from customers about multiple applications failing to work properly. The LTM Specialist looks at the services running and notices that the bigd process has NOT started.
How are monitored LTM device objects marked when the bigd process is stopped?

• A.red or offline
• B.blue or unchecked
• C.unchanged until bigd is restarted
• D.green or available

Comment: *

Name: *

Email: *

Verification: *

A failover event is recorded in the log messages:
Jan 01 00:00:50 BIG-IP notice sod[5855]: 01140029:5: HA proc_running tmm fails action is go offline and down links.
Jan 01 00:00:50 BIG-IP notice sod[5855]: 010c0050:5: Sod requests links down.
Jan 01 00:00:50 BIG-IP notice sod[5855]: 010c0054:5: Offline for traffic group /Common/traffic-
group-1.
Jan 01 00:00:50 BIG-IP notice sod[5855]: 010c003e:5: Offline
Jan 01 00:00:50 BIG-IP notice logger: /usr/bin/tmipsecd --tmmcount 4 ==> /usr/bin/bigstart stop
racoon
Jan 01 00:00:50 BIG-IP info lacpd[5502]: 01160016:6: Failover event detected. (Switchboard failsafe disabled while offline)
Jan 01 00:00:51 BIG-IP err bcm56xxd[5296]: 012c0010:3: Failover event detected. Marking external interfaces down. bsx.c(3633)
Jan 01 00:00:51 BIG-IP info bcm56xxd[5296]: 012c0015:6: Link: 1.1 is DOWN
Jan 01 00:00:56 BIG-IP notice mcpd[5318]: 0107143c:5: Connection to CMI peer 10.0.0.3 has been removed
Jan 01 00:00:56 BIG-IP notice mcpd[5318]: 0107143a:5: CMI reconnect timer: enabled
Jan 01 00:00:56 BIG-IP notice mcpd[5318]: 01071431:5: Attempting to connect to CMI peer
10.0.0.3 port 6699
What is the cause of the failover?

• A.Loss of connection to CMI peer 10.0.0.3 initiated the failover.
• B.TMM failed, and system fail-safe initiated the failover.
• C.TMM failed, and VLAN fail-safe initiated the failover.
• D.A switchboard failure caused system fail-safe to initiate the failover.

Comment: *

Name: *

Email: *

Verification: *
