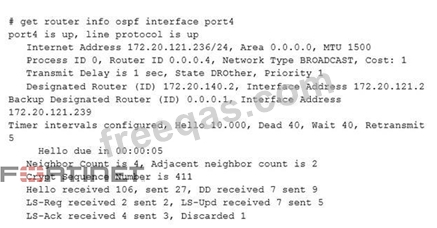

Examine the output of the 'get router info ospf interface' command shown in the exhibit; then answer the question below.

Which statements are true regarding the above output? (Choose two.)

• A.Theport4 interface is connected to the OSPF backbone area.
• B.The local FortiGate has been elected as the OSPF backup designated router.
• C.There are at least 5 OSPF routers connected to the port4 network.
• D.Two OSPF routers are down in the port4 network.

Comment: *

Name: *

Email: *

Verification: *

View the following FortiGate configuration.

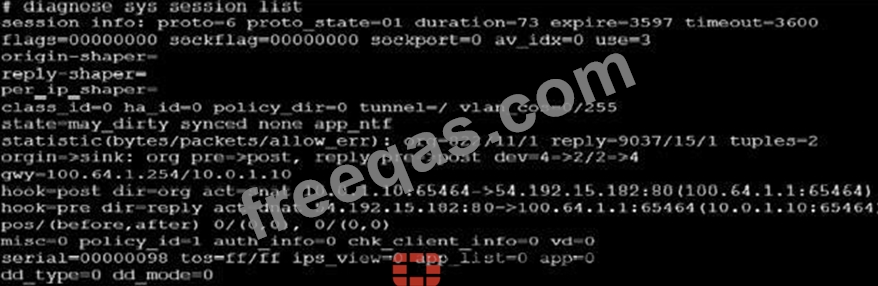

All traffic to the Internet currently egresses from port1. The exhibit shows partial session information for Internet traffic from a user on the internal network:

If the priority on route ID 1 were changed from 5 to 20, what would happen to traffic matching that user's session?

• A.The session would remain in the session table, and its traffic would still egress from port1.
• B.The session would remain in the session table, but its traffic would now egress from both port1 and port2.
• C.The session would remain in the session table, and its traffic would start to egress from port2.
• D.The session would be deleted, so the client would need to start a new session.

Comment: *

Name: *

Email: *

Verification: *

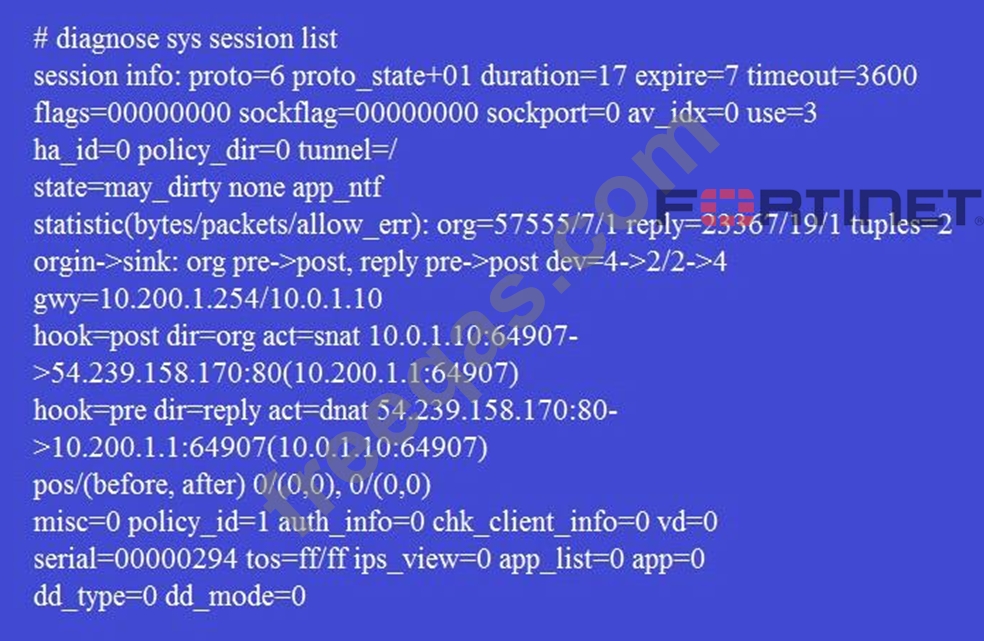

Refer to the exhibit, which contains the output of diagnose sys session list.

If the HA ID for the primary unit is zero (0), which statement about the output is true?

• A.This session cannot be synced with the slave unit.
• B.The inspection of this session has been offloaded to the slave unit.
• C.The master unit is processing this traffic.
• D.This session is for HA heartbeat traffic.

Comment: *

Name: *

Email: *

Verification: *

Examine the following partial outputs from two routing debug commands; then answer the question below.
# get router info kernel
tab=254 vf=0 scope=0type=1 proto=11 prio=00.0.0.0/0.0.0.0/0->0.0.0.0/0 pref=0.0.0.0 gwy=10.200.1.254 dev=2(port1) tab=254 vf=0 scope=0type=1 proto=11 prio=10 0.0.0.0/0.0.0.0/0->0.0.0.0/0 pref=0.0.0.0 gwy=10.200.2.254 dev=3(port2) tab=254 vf=0 scope=253type=1 proto=2 prio=0 0.0.0.0/0.0.0.0/.->10.0.1.0/24 pref=10.0.1.254 gwy=0.0.0.0 dev=4(port3)
# get router info routing-table all s*0.0.0.0/0 [10/0] via 10.200.1.254, portl [10/0] via 10.200.2.254, port2,
[10/0] dO.0.1.0/24 is directly connected, port3 dO.200.1.0/24 is directly connected, portl d0.200.2.0/24 is directly connected, port2 Which outbound interface or interfaces will be used by this FortiGate to route web traffic from internal users to the Internet?

• A.port!
• B.port2.
• C.Both portl and port2.
• D.port3.

Comment: *

Name: *

Email: *

Verification: *

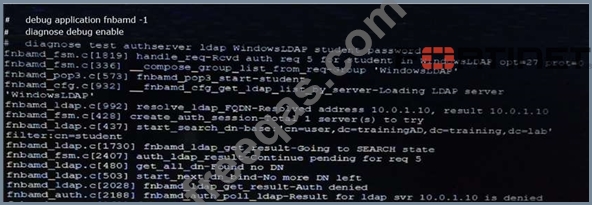

An LDAP user cannot authenticate against a FortiGate device. Examine the real time debug output shown in the exhibit when the user attempted the authentication; thenanswer the question below.


Based on the output in the exhibit, what can cause this authentication problem?

• A.The FortiGate has been configured with thewrong password for the LDAP administrator.
• B.User student is using a wrong password.
• C.The FortiGate has been configured with the wrong authentication schema.
• D.User student is not found in the LDAP server.
