A FortiGate has two default routes:

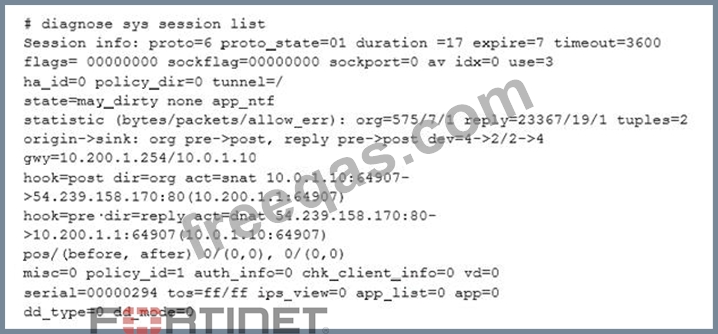

All Internet traffic is currently using port1. The exhibit shows partial information for one sample session of Internet traffic from an internal user:

What would happen with the traffic matching the above session if the priority on the first default route (IDd1) were changed from 5 to 20?

• A.Session would be deleted, so the client would need to start a new session.
• B.Session would remain in the session table and its traffic would be shared between port1 and port2.
• C.Session would remain in the session table and its traffic would start using port2 as the outgoing interface.
• D.Session would remain in the session table and its traffic would keep using port1 as the outgoing interface.

Comment: *

Name: *

Email: *

Verification: *

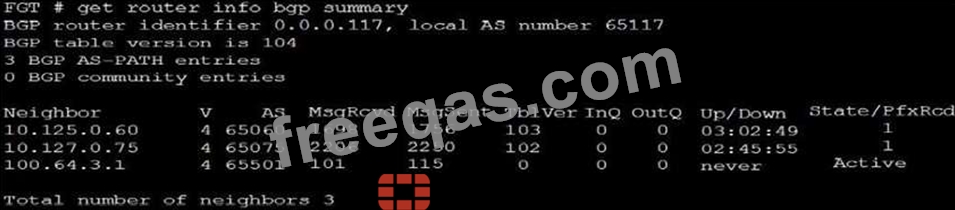

Refer to the exhibit, which contains the output of a BGP debug command.

Which statement about the exhibit is true?

• A.The local router BGP state is OpenConfirm with the 10.127.0.75 peer.
• B.The local router has not established a TCP session with 100.64.3.1.
• C.The local router has received a total of three BGPprefixes from all peers.
• D.Since the counters were last reset, the 10.200.3.1 peer has never been down.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit, which contains partial output from an IKE real-time debug.

Based on the debug output, which phase 1 setting is enabled in the configuration of this VPN?

• A.auto-discovery-sender
• B.auto-discovery-forwarder
• C.auto-discovery-receiver
• D.auto-discovery-shortcut

Comment: *

Name: *

Email: *

Verification: *

Which two statements about the Security Fabric are true? (Choose two.)

• A.Only the root FortiGate collects network information and forwards it to FortiAnalyzer.
• B.Branch FortiGate devices must be configured first.
• C.All FortiGate devices in the Security Fabric must have bidirectional FortiTelemetry connectivity.
• D.FortiGate uses FortiTelemetry protocol to communicate with FortiAnalyzer.

Comment: *

Name: *

Email: *

Verification: *

Which real time debug should an administrator enable to troubleshoot RADIUS authentication problems?

• A.Diagnose debug application radius -1.
• B.Diagnose debug application fnbamd -1.
• C.Diagnose authd console -log enable.
• D.Diagnose radius console -log enable.
