What are two benefits of using FortiManager to organize and manage the network for a group of FortiGate devices? (Choose two )

• A.It reduces WAN usage on FortiGate devices by acting as a local FortiGuard server.
• B.It acts as a policy compliance entity to review all managed FortiGate devices.
• C.It improves SD-WAN performance on the managed FortiGate devices.
• D.It sends probe signals as health checks to the beacon servers on behalf of FortiGate.
• E.It simplifies the deployment and administration of SD-WAN on managed FortiGate devices.

Comment: *

Name: *

Email: *

Verification: *

Which statement about using BGP routes in SD-WAN is true?

• A.Adding static routes must be enabled on all ADVPN interfaces.
• B.VPN topologies must be form using only BGP dynamic routing with SD-WAN.
• C.Learned routes can be used as dynamic destinations in SD-WAN rules.
• D.Dynamic routing protocols can be used only with non-encrypted traffic.

Comment: *

Name: *

Email: *

Verification: *

What would best describe the SD-WAN traffic shaping mode that bases itself on a percentage of available bandwidth?

• A.Reverse policy shaping mode
• B.Shared policy shaping mode
• C.Interface-based shaping mode
• D.Per-IP shaping mode

Comment: *

Name: *

Email: *

Verification: *

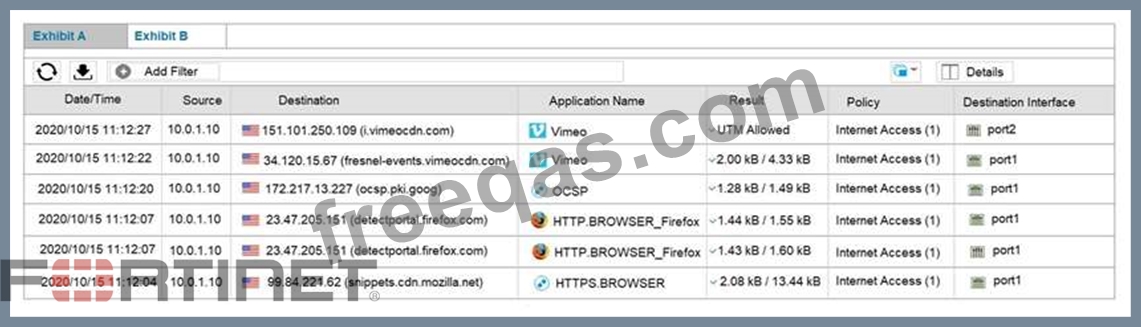

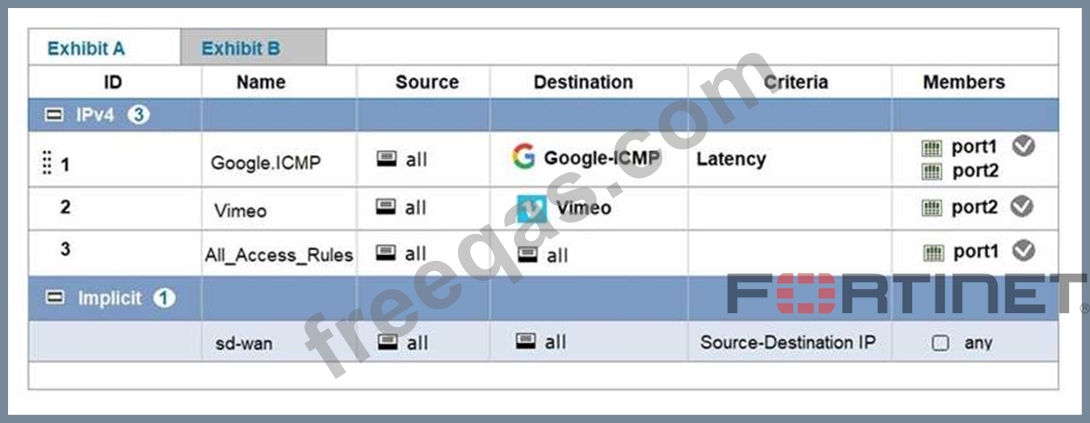

Refer to exhibits.


Exhibit A shows the SD-WAN rules and exhibit B shows the traffic logs. The SD-WAN traffic logs reflect how FortiGate processed traffic.
Which two statements about how the configured SD-WAN rules are processing traffic are true? (Choose two.)

• A.SD-WAN rules are evaluated in the same way as firewall policies: from top to bottom.
• B.The implicit rule overrides all other rules because parameters widely cover sources and destinations.
• C.The initial session of an application goes through a learning phase in order to apply the correct rule.
• D.The All_Access_Rules rule load balances Vimeo application traffic among SD-WAN member interfaces.

Comment: *

Name: *

Email: *

Verification: *

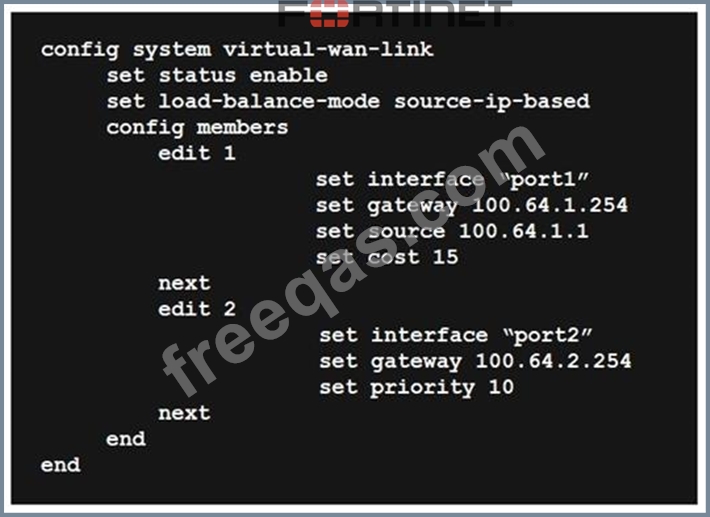

Refer to the exhibit.

Based on output shown in the exhibit, which two commands can be used by SD-WAN rules? (Choose two.)

• A.set cost 15.
• B.set source 100.64.1.1.
• C.set priority 10.
• D.set load-balance-mode source-ip-based.
